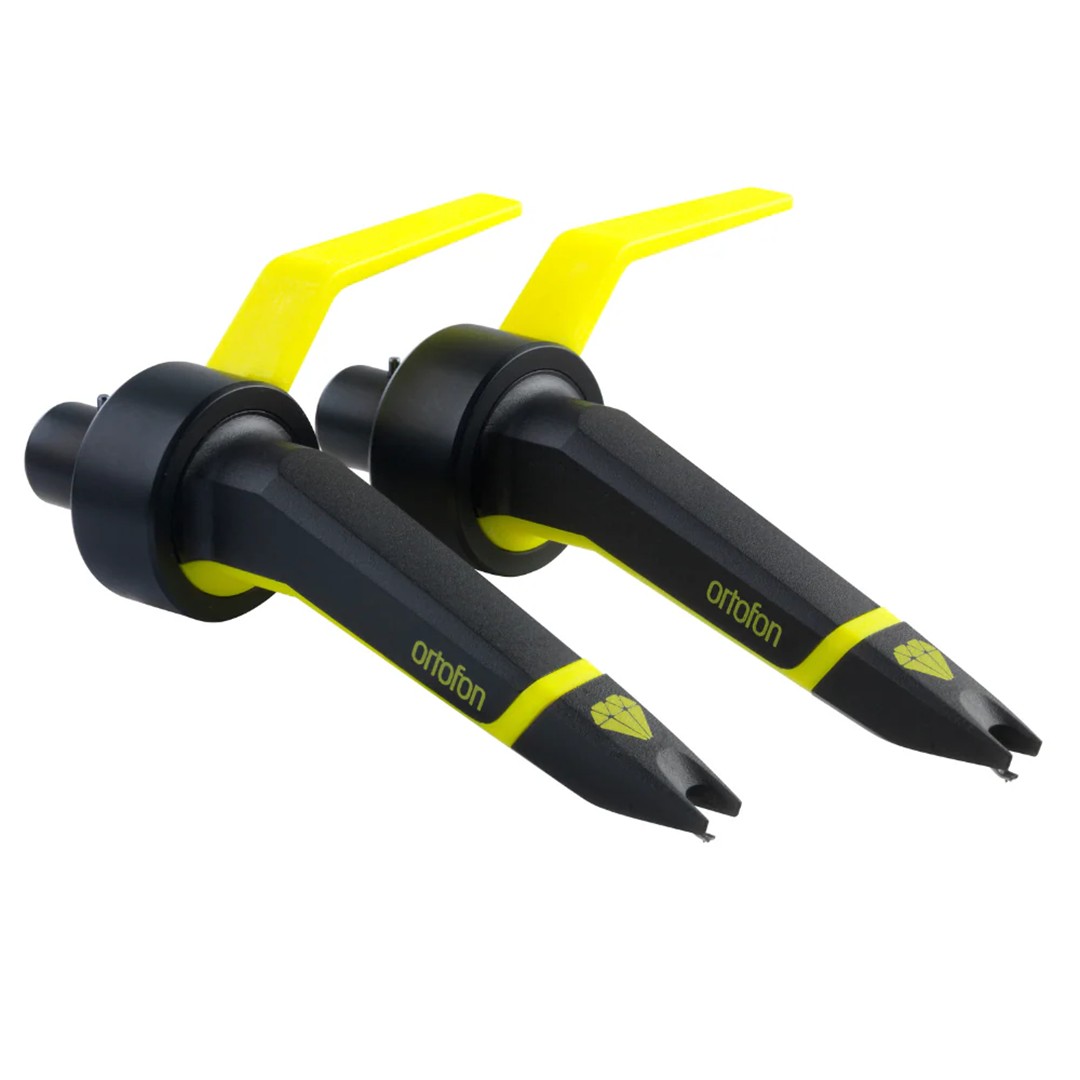

Ortofon CC MKII TWIN CLUB
The Ortofon Concorde MkII Twin CLUB is a flagship two-piece cartridge package engineered for dual-deck club setups, broadcast studios, and discerning vinyl selectors who prioritize high-fidelity sound reproduction across both turntables. Housing two factory-matched Concorde MkII CLUB cartridges inside a protective aluminum flight case, this set delivers a Special Elliptical diamond profile and a punchy 8 mV output voltage, extracting maximum acoustic nuance, transparent stereo imaging, and rich dynamics from vinyl records without requiring headshell assembly or alignment tools.
Core Performance Features
-
Complete Dual-Deck Audiophile Package: Supplies two factory-matched Concorde MkII CLUB cartridges with pre-fitted styli, providing a matched stereo pair ready for dual-turntable setups.
-
Protective Aluminum Flight Case: Delivered inside a foam-padded aluminum hard case with a secure latch and stylus brush, shielding delicate cantilevers and elliptical styli against impact during transit between club gigs.
-
Special Elliptical Diamond Profile: Outfitted with a precision Special Elliptical diamond (r/R 13/25 µm) that makes deeper, broader contact with record groove walls to retrieve crisp high-frequency detail, subtle harmonics, and an expansive soundstage.
-
High-Output 8 mV Signal: Pumps out a robust 8 mV output that maximizes signal-to-noise performance and provides clean gain staging into club mixers and studio preamps with minimal background noise.
-
Direct Plug-and-Play SME Mounting: Screws directly into standard S-shaped SME-bayonet tonearm sockets without headshells, lead wires, screws, or manual alignment protractors.
-
Ergonomic Replaceable Finger Lift: Features wide, textured yellow finger lifts engineered for steady, slip-free handling in dim club booths, easily replaced if damaged.
-
DVS & Real Vinyl Tracking: Fully optimized for clean reproduction across traditional analog vinyl collections as well as digital vinyl systems (DVS) like Serato DJ Pro, rekordbox, and Traktor Scratch.
Technical Layout & Specifications
-
Package Contents: 2 x Ortofon Concorde MkII CLUB cartridges (with styli), 1 x Stylus brush, 1 x Aluminum flight case.
-
Cartridge Type: Moving Magnet (MM).
-
Mounting Connection: Direct SME 4-pin bayonet.
-
Stylus Profile: Special Elliptical (r/R 13/25 µm).
-
Output Voltage: 8 mV (@ 1 kHz, 5 cm/sec).
-
Frequency Response: 20 Hz – 20,000 Hz.
-
Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).
-
Recommended Tracking Force: 4.0 g (40 mN).
-
Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).
-
Channel Separation: 25 dB (@ 1 kHz).
-
Internal Impedance / DC Resistance: 1,000 Ohms.
-
Internal Inductance: 580 mH.
-
Recommended Load Resistance: 47 kOhms.
-
Recommended Load Capacitance: 200 – 400 pF.
-
Cartridge Weight (Each): 18.5 g.
