Ortofon CC MKII MIX

Manufacturer ORTOFON Email
Your price: R1800
Normally: R1800
You Save:

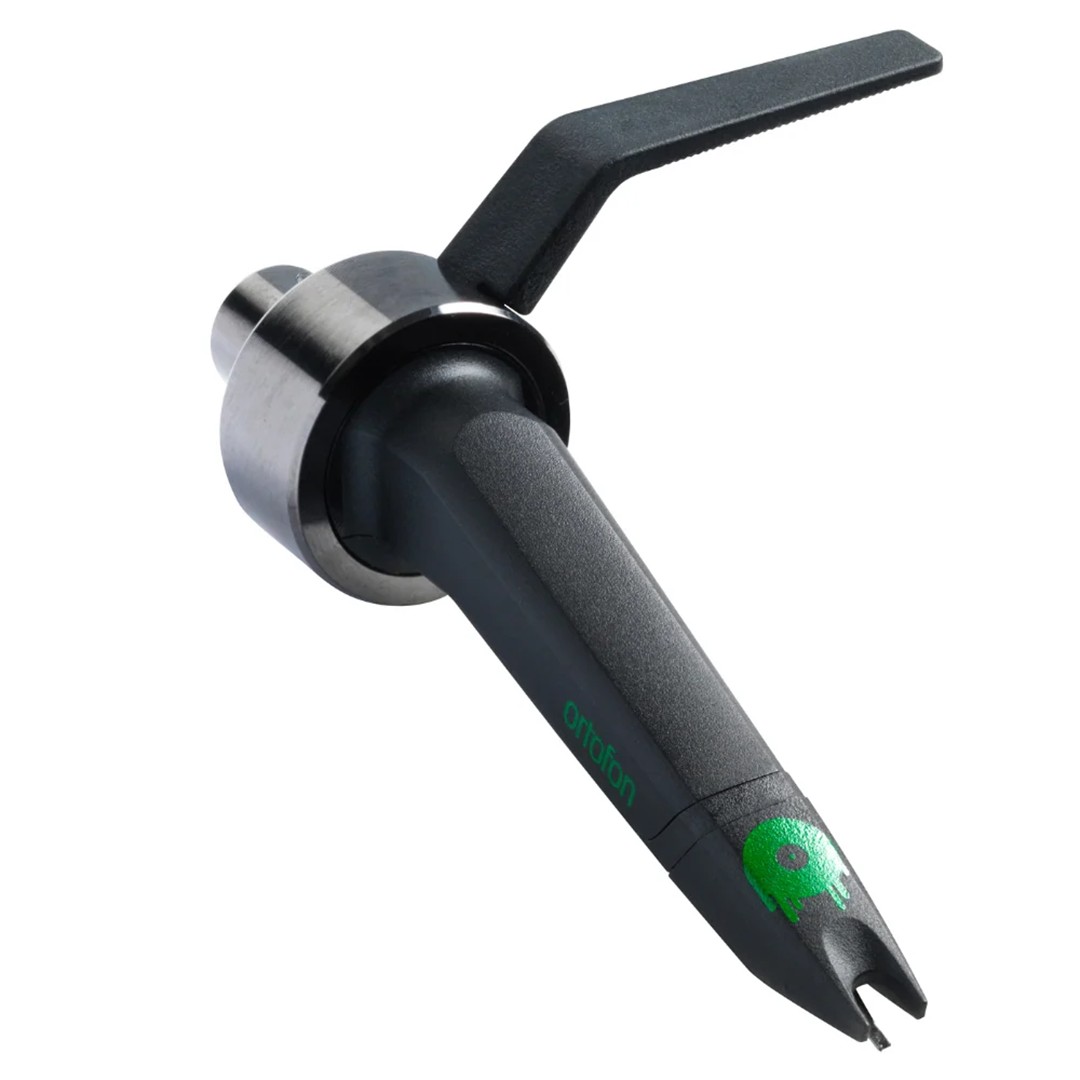

The Ortofon Concorde MkII MIX is an all-round moving magnet (MM) DJ cartridge designed for general mixing, backcueing, scratch practice, and everyday club performances. Serving as the versatile workhorse of the Concorde MkII family, the MIX combines balanced sound reproduction, solid groove-tracking ability, a durable spherical stylus, and the iconic one-piece direct SME bayonet design that screws directly onto standard S-shaped DJ tonearms without requiring a separate headshell or alignment tools.

Core Performance Features

  • All-Round Performance Workhorse: Delivers an evenly balanced frequency response across low, mid, and high bands, making it suited for any musical genre from hip-hop and house to pop and reggae.

  • Direct Plug-and-Play SME Mounting: Features Ortofon's integrated Concorde body that screws directly into any standard SME-bayonet S-shaped tonearm, eliminating the need for headshell leads, mounting screws, or alignment protractors.

  • Durable Spherical Diamond Stylus: Fitted with a precision spherical diamond tip that sits gently in the vinyl groove, providing reliable tracking stability while minimizing vinyl wear during backcueing and mixing.

  • Solid Tracking & Skip Resistance: Built with a sturdy cantilever and balanced suspension that keeps the needle locked in the groove during beatmatching, cueing, and light scratching.

  • Replaceable Ergonomic Finger Lift: Outfitted with a wide, textured, and replaceable finger lift that provides a secure, steady grip in dark club booths and can be easily swapped if damaged.

  • Wide Software & Vinyl Compatibility: Optimized for both standard analog vinyl playback and digital vinyl systems (DVS) like Serato DJ Pro, Traktor Scratch, and Pioneer DJ rekordbox.

Technical Layout & Specifications

  • Cartridge Type: Moving Magnet (MM).

  • Mounting Connection: Direct SME 4-pin bayonet.

  • Stylus Profile: Spherical (R 18 µm).

  • Output Voltage: 6 mV (@ 1 kHz, 5 cm/sec).

  • Frequency Response: 20 Hz – 20,000 Hz (-3 dB).

  • Tracking Force Range: 2.0 g – 4.0 g (20 – 40 mN).

  • Recommended Tracking Force: 3.0 g (30 mN).

  • Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).

  • Channel Separation: 20 dB (@ 1 kHz).

  • Internal Impedance / DC Resistance: 750 Ohms.

  • Internal Inductance: 450 mH.

  • Recommended Load Resistance: 47 kOhms.

  • Recommended Load Capacitance: 200 – 600 pF.

  • Cartridge Weight: 18.5 g.
