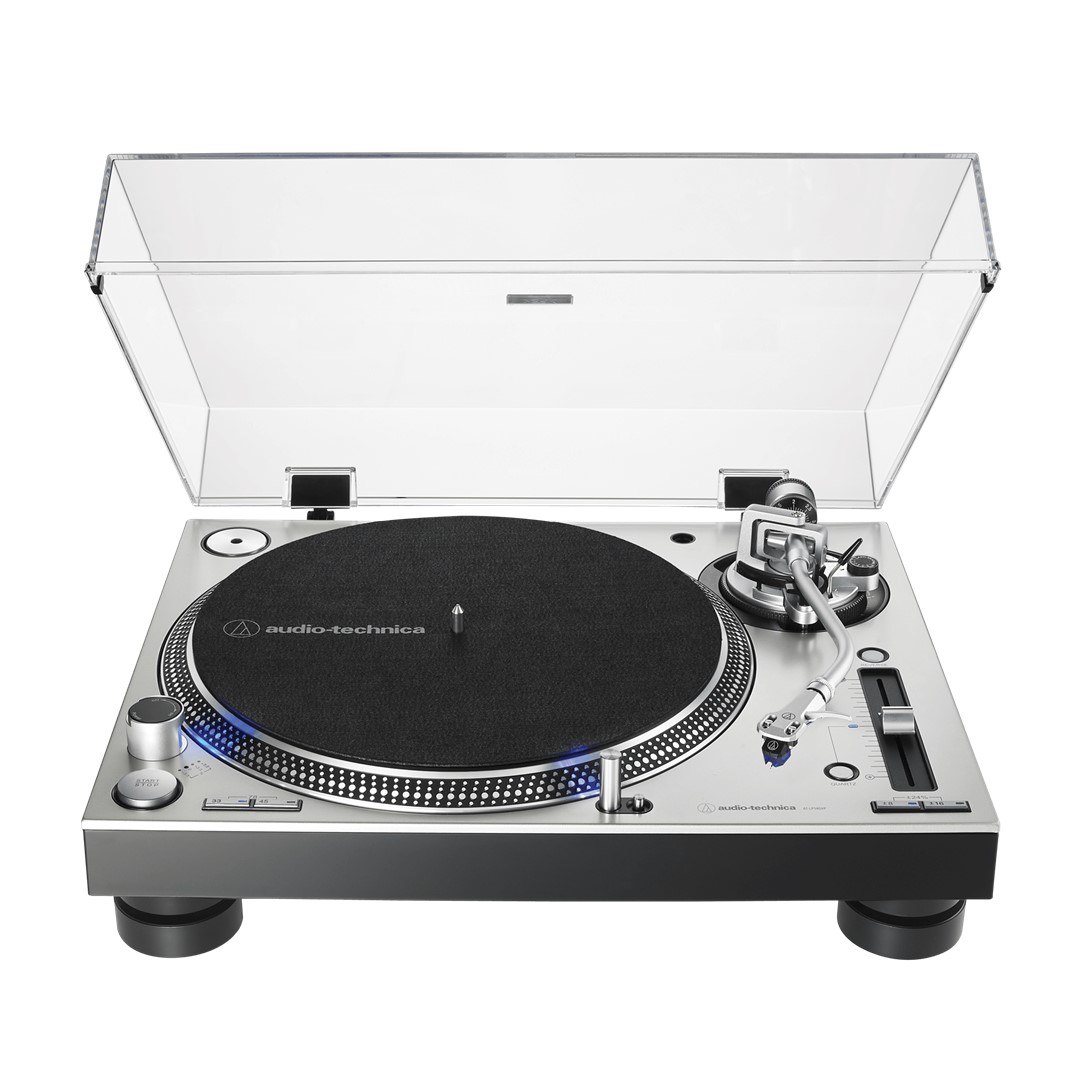

LP140XPSVE
The Audio-Technica AT-LP140XPSVE Silver Pro Direct Drive Turntable delivers high-performance playback with a high-torque motor, precise pitch control, and versatile speed settings.
Specifications:
- Drive Method: Direct drive
- Type: 3-speed, fully manual operation
- Motor: High-torque DC motor
- Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
- Pitch Variation: +/-8%, +/-16%, +/-24%
- Turntable Platter: Die-cast aluminum
- Starting Torque: 2.2 kgf-cm
- Wow and Flutter: <0.2% WRMS (33 RPM)
- Signal-to-Noise Ratio: >50 dB
- Output Level: 5.5 mV nominal at 1 kHz, 5 cm/sec
- Power Supply Requirements: 115/230V AC, 60/50 Hz
- Power Consumption: 4.3 W
- Weight: 10.0 kg
- Cartridge & Stylus:
- Model: AT-XP3
- Type: VM Dual Magnet
- Output Voltage: 5.5 mV (@ 1.0 kHz, 5 cm/sec)
- Vertical Tracking Force Range: 2.0 to 4.0 g (standard 3.0 g)
- Stylus Shape: Conical
- Stylus Size: 0.6 mil
- Recommended Load Impedance: 47,000 ohms
- Weight: 6.2 g
- Headshell:
- Model: AT-HS6
- Weight: 9 g
- Tonearm:
- Type: Balanced S-shaped tonearm with detachable headshell
- Effective Length: 230.5 mm
- Overhang: 16 mm
- Maximum Tracking Error Angle: Less than 3 degrees
- Applicable Cartridge Weight: 3.5 – 8.5 g
- Anti-skating Range: 0-4 g
