LP120XBTUSBBK

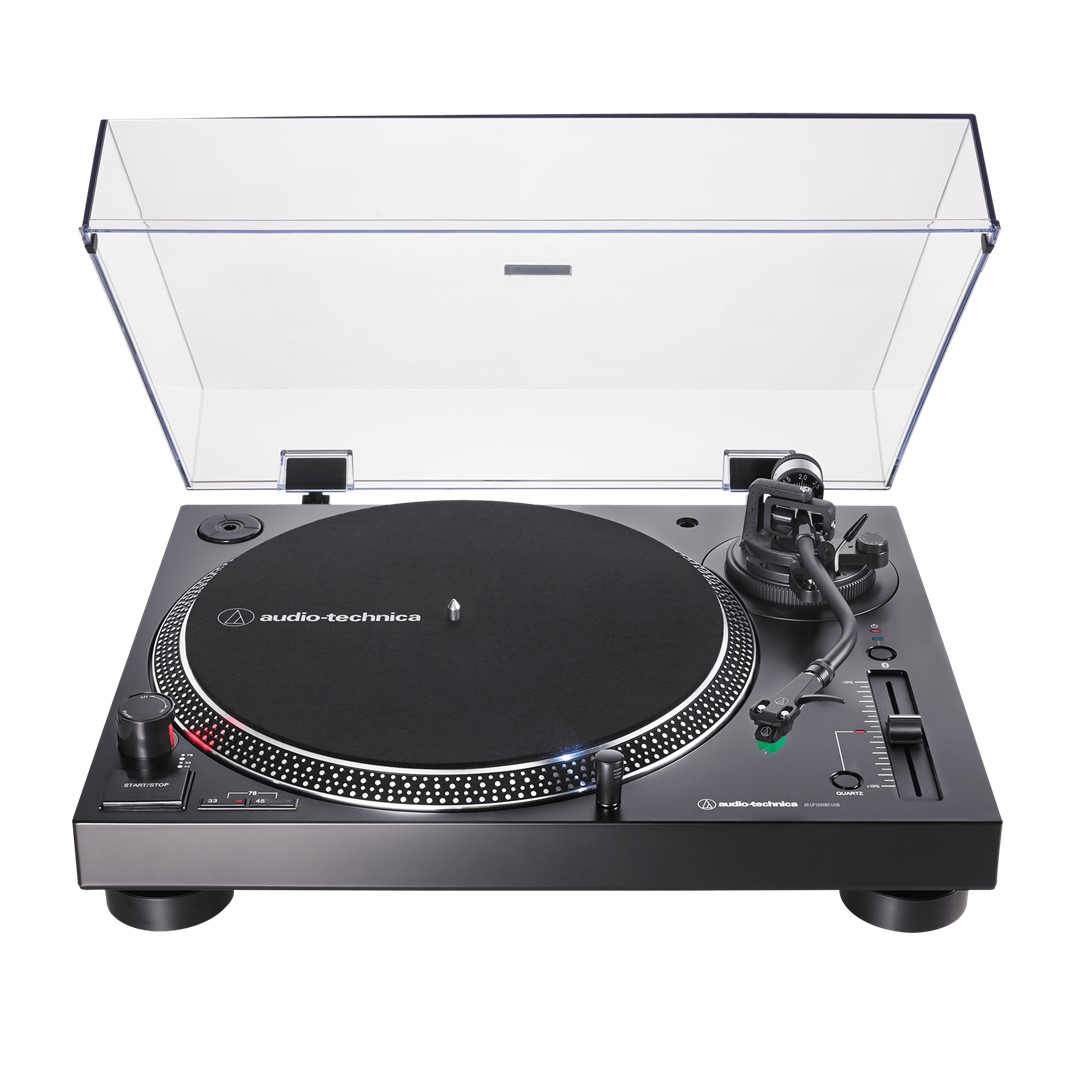

The Audio-Technica AT-LP120XBTUSBBK Direct-Drive Turntable combines analog, USB, and Bluetooth® connectivity for versatile listening options. Featuring a DC servo motor, adjustable tonearm, and high-quality AT-VM95E cartridge, it provides exceptional audio performance.
Specifications
- Type: 3-speed, fully manual operation
- Motor: DC servo motor
- Drive Method: Direct drive
- Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
- Turntable Platter: Die-cast aluminum
- Starting Torque: >1.0 kgf.cm
- Braking System: Electronic brake
- Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
- Signal-to-Noise Ratio: >50 dB
- Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec; Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
- Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
- USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
- Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max
- Power Consumption: 2.75 W
- Dimensions: 452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H
- Weight: 8 kg (17.6 lbs.), without dust cover
- Accessories Included: AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2′) USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
- Tonearm Type: Balanced S-shaped tonearm with detachable headshell
- Effective Arm Length: 230.5 mm
- Overhang: 16 mm
- Tracking Error Angle: Less than 3 degrees
- Applicable Cartridge Weight: 3.5-8.5 g
- Anti-skating Range: 0-4 g
- Replacement Stylus: AT-VMN95E
- Communication System: Bluetooth Version 5.0
- Maximum Communication Range: Line of sight – approx. 10 m (33′)
- Compatible Bluetooth Profile: A2DP
- Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
