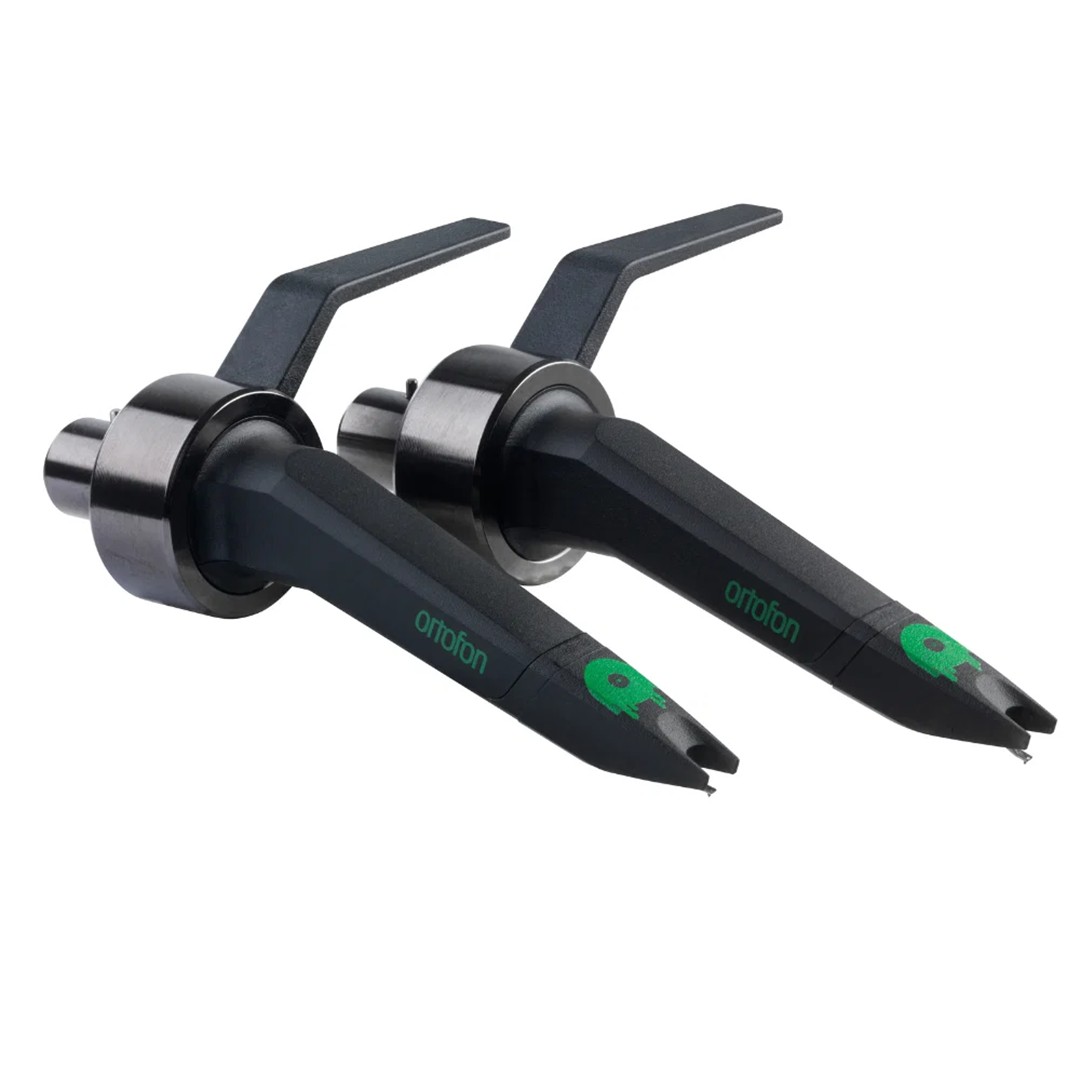

Ortofon CC MKII TWIN MIX

Core Performance Features

• Complete Dual-Deck Bundle: Includes two factory-matched Concorde MkII MIX cartridges and styli, giving DJs everything needed to equip a pair of turntables simultaneously.

• Protective Aluminum Flight Case: Ships in a rugged, foam-padded aluminum hard case with a secure latch, providing shock-resistant protection and convenient transport in gig bags.

• Direct SME Tonearm Mount: The one-piece Concorde design mounts directly to standard S-shaped SME tonearm bayonets, eliminating headshells, lead wires, screws, and alignment protractors.

• Balanced Acoustic Profile: Delivers an even frequency curve across bass, midrange, and treble, suited for general mixing across any music genre.

• Durable Spherical Diamond: Outfitted with a precision spherical diamond tip that rides smoothly in record microgrooves, minimizing vinyl wear during backcueing and juggling.

• Ergonomic Replaceable Finger Lift: Features wide, textured finger lifts designed for secure grip in low-light booths, engineered for quick replacement if damaged.

• DVS & Analog Tracking: Fully optimized for clean playback on standard vinyl pressings as well as digital vinyl systems (DVS) like Serato DJ Pro, rekordbox, and Traktor Scratch.

Technical Layout & Specifications

• Package Contents: 2 x Ortofon Concorde MkII MIX cartridges (with styli), 1 x Aluminum flight case.

• Cartridge Type: Moving Magnet (MM).

• Mounting Connection: Direct SME 4-pin bayonet.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 6 mV (@ 1 kHz, 5 cm/sec).

• Frequency Response: 20 Hz – 20,000 Hz (-3 dB).

• Tracking Force Range: 2.0 g – 4.0 g (20 – 40 mN).

• Recommended Tracking Force: 3.0 g (30 mN).

• Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).

• Channel Separation: 20 dB (@ 1 kHz).

• Internal Impedance / DC Resistance: 750 Ohms.

• Internal Inductance: 450 mH.

• Recommended Load Resistance: 47 kOhms.

• Recommended Load Capacitance: 200 – 600 pF.

• Cartridge Weight (Each): 18.5 g.
