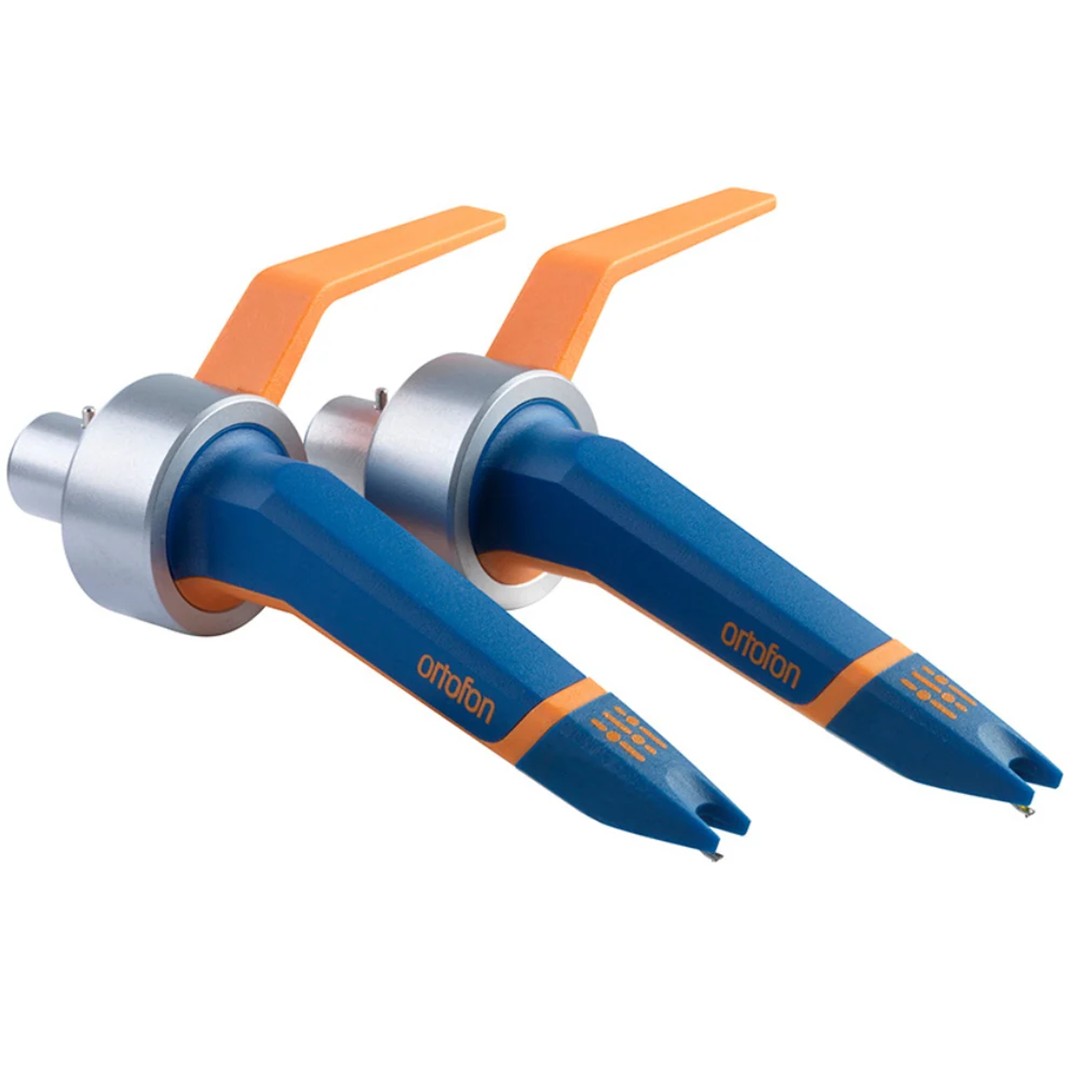

Ortofon CC MKII TWIN DJ
The Ortofon Concorde MkII Twin DJ is a complete, two-piece DJ cartridge package designed for dual-turntable setups in clubs, mobile DJ rigs, and battle routines. Supplying two factory-matched Concorde MkII DJ cartridges housed within a protective, foam-lined aluminum flight case, this set delivers enhanced cantilever stiffness, balanced sound reproduction, and rugged skip resistance for backcueing, scratch practice, and live club performance without requiring separate headshells or alignment tools.
Core Performance Features
-
Complete Dual-Deck DJ Package: Contains two factory-matched Concorde MkII DJ cartridges with pre-fitted styli, enabling instant setup across two turntables.
-
Protective Aluminum Flight Case: Delivered inside a durable, foam-padded aluminum hard case with a lockable latch, shielding fragile cantilevers and styli from impact during transit.
-
Rigid Cantilever & Enhanced Tracking: Built with a stiffer suspension profile than the MIX model, keeping the diamond firmly anchored in the record groove during sharp backcueing, quick juggling, and aggressive scratches.
-
Balanced Acoustic Curve: Engineered to provide a clean, even frequency response with tight low-end definition and clear top-end detail suited for club PA systems and booth monitors.
-
Durable Spherical Diamond: Uses a precision spherical diamond tip that sits higher in the groove, minimizing record wear during repeated cueing on both standard vinyl and DVS control records (rekordbox, Serato, Traktor).
-
Direct SME Tonearm Mounting: Screws directly into standard S-shaped SME-bayonet tonearm sockets, eliminating headshell lead wires, screws, and overhang alignment.
-
Ergonomic Replaceable Finger Lift: Features textured, wide finger lifts engineered for steady, slip-free control in dimly lit venues, designed for simple replacement if broken.
Technical Layout & Specifications
-
Package Contents: 2 x Ortofon Concorde MkII DJ cartridges (with styli), 1 x Aluminum flight case.
-
Cartridge Type: Moving Magnet (MM).
-
Mounting Connection: Direct SME 4-pin bayonet.
-
Stylus Profile: Spherical (R 18 µm).
-
Output Voltage: 6 mV (@ 1 kHz, 5 cm/sec).
-
Frequency Response: 20 Hz – 20,000 Hz.
-
Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).
-
Recommended Tracking Force: 4.0 g (40 mN).
-
Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).
-
Channel Separation: 22 dB (@ 1 kHz).
-
Internal Impedance / DC Resistance: 1,000 Ohms.
-
Internal Inductance: 580 mH.
-
Recommended Load Resistance: 47 kOhms.
-
Recommended Load Capacitance: 200 – 400 pF.
-
Cartridge Weight (Each): 18.5 g.
