IRIG KEYS I/O 25
The iRig® Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 full sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)
The iRig® Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 full sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)
Being certified Apple MFi keyboard controllers (“Made for iPod, iPhone, iPad,”) iRig Keys I/O are guaranteed to work out of the box with all iOS devices including the latest generation of iPhone 7, that does not have an audio output, thanks to the on-board audio interface. The included Lighting cable allows for straight plug-and-play with Apple iOS devices, the USB cable connects Mac and PC computers.
iRig Keys I/O Specifications
Microphone Input
- Microphone Type: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 3.2 kOhms
- Gain Range: 46 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -100 dB RMS
Instrument Input
- Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -100 dB RMS
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +13 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)
- Output Dynamic Range: 102 dB(A)
- Output Impedance: 150 Ohms balanced
Stereo Headphone Output
- Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
- Headphone Level Power 100mW into 50 Ohms

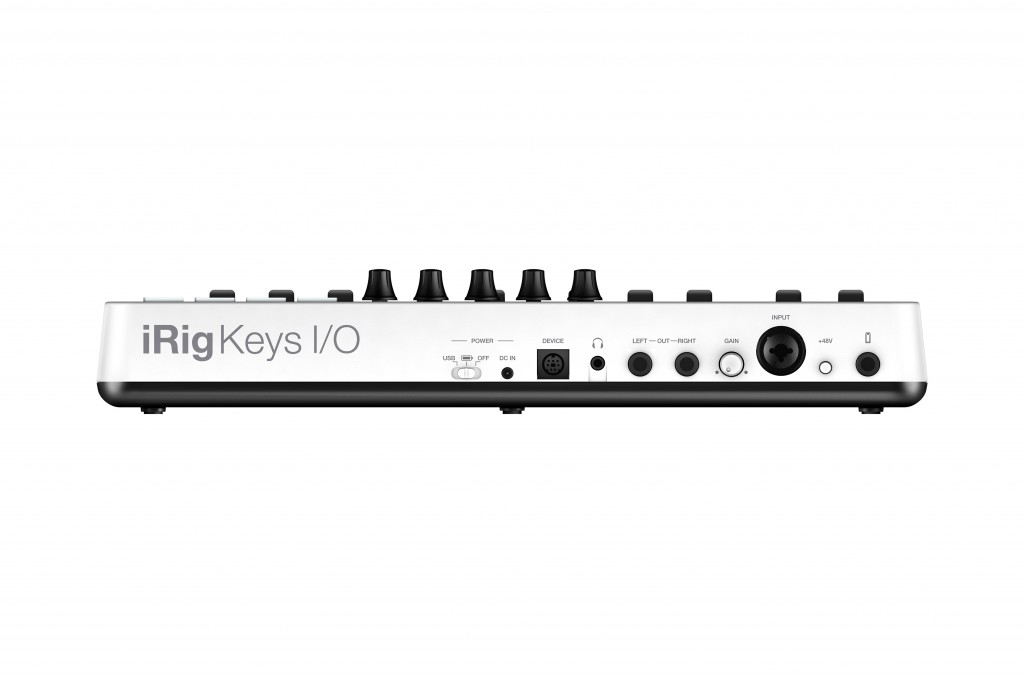

Other Input/Output
- DC barrel: 1x DC barrel. For power and device charging.
- Device Connector: mini-DIN
- External Pedal Input: 1/4" TRS Jack
Common
- Conversion: 16 or 24-bit A/D - D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
- Power:
• USB bus powered when used with a computer
• Battery powered (4xAA included) when used with an iOS device
• DC power supply (not included, iRig PSU 3A sold separately)**
Keyboard
- Keys: 25 or 49 (depending on the version) full-size keys with velocity
Pads
- 8 velocity-sensitive multi color assignable pads
Controls
- Slider strips for pitch and modulation (user programmable)
- Octave, program change and transport
- 5 programmable touch sensitive encoders
