AT81CP

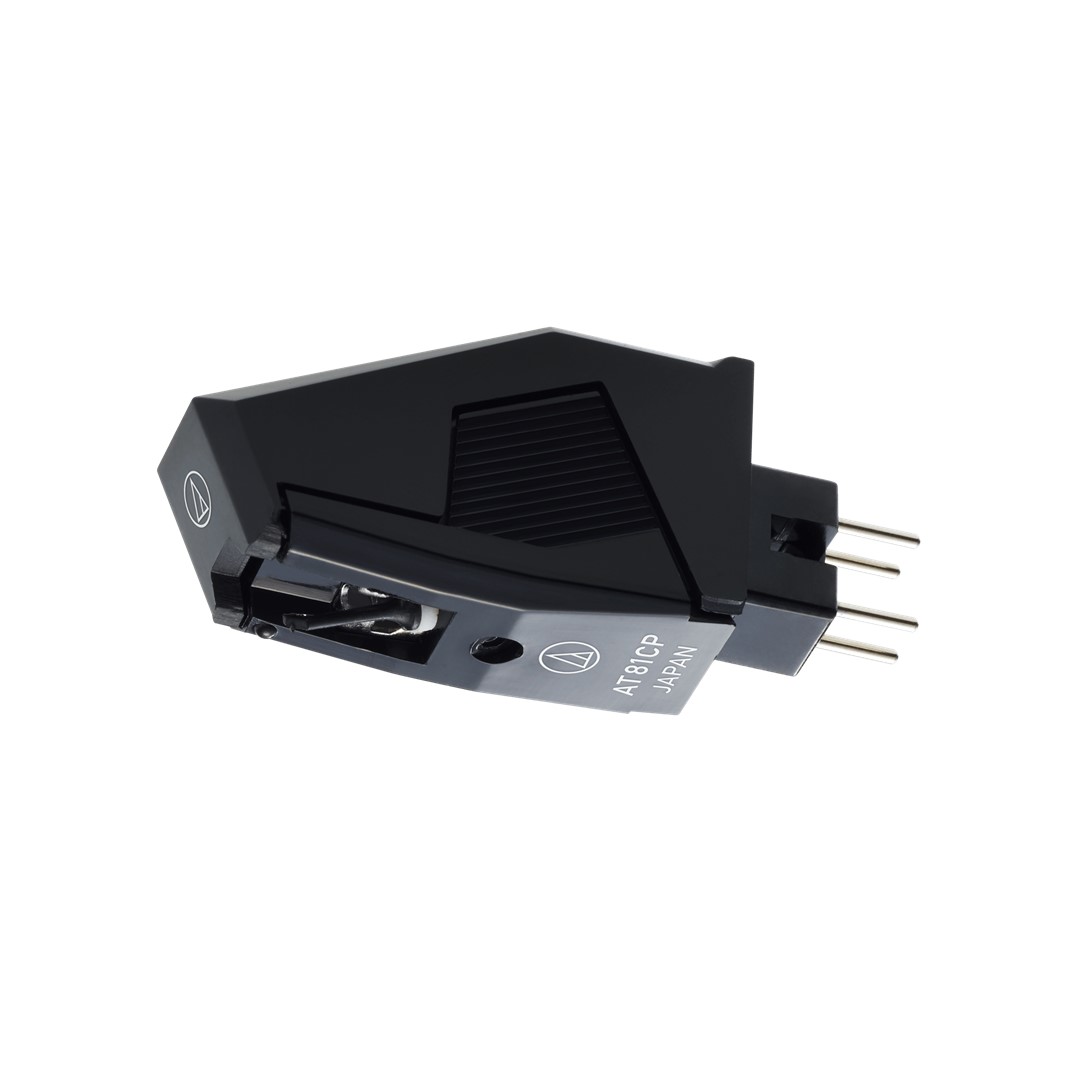

The Audio-Technica AT81CP Cartridge is designed for P-mount turntables and features a 0.6 mil conical stylus. It offers precise tracking and excellent sound quality. With a frequency response of 20 to 20,000 Hz and a 3.5 mV output, this cartridge ensures clear and detailed audio reproduction. Ideal for audiophiles seeking reliability and performance, it combines durability with high-quality sound.
Specifications:
- Frequency Response: 20 – 20,000 Hz
- Channel Separation: 18 dB at 1 kHz
- Vertical Tracking Angle: 20°
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 ohms
- Coil Inductance: 400 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec)
- Output Channel Balance: 2.5 dB
- Stylus Shape: Conical
- Cantilever: Carbon Fiber Reinforced ABS
- Mounting: P-mount
- Dimensions: H10.0 x W15.3 x D35.1 mm
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: ATN81CP
- Stylus Size: 0.6 mil
- Type: Dual Magnet
- Weight: 6.0 g
