AT-VM95EN

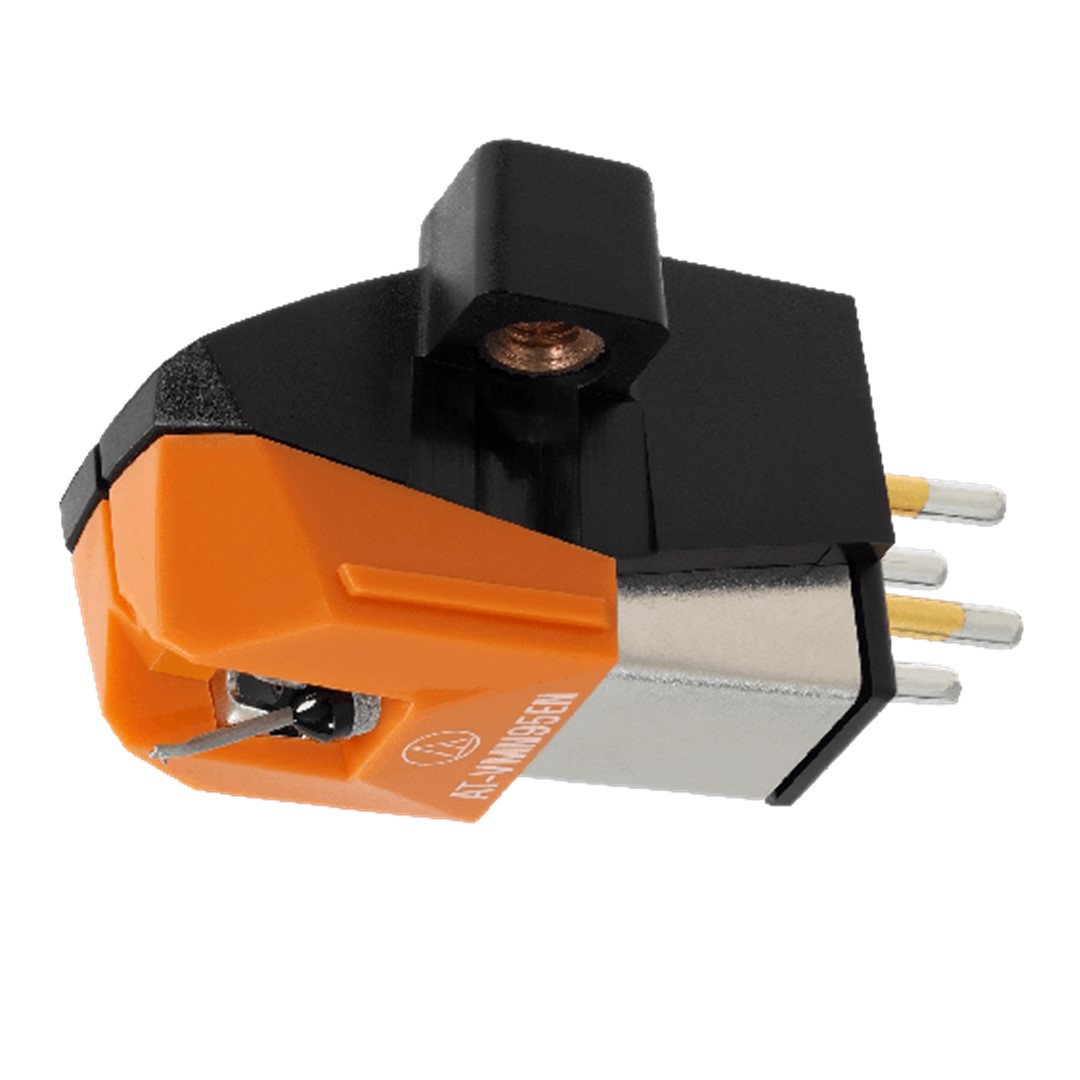

The Audio Technica AT-VM95EN Dual Moving Magnet Cartridge features a 0.3 x 0.7 mil elliptical nude stylus for precise tracking and excellent sound quality. Designed for half-inch mount turntables, it provides a robust output level of 3.5 mV, outstanding channel separation, and low distortion. Its low-resonance housing includes threaded inserts for easy installation with just two screws. Compatible with six interchangeable AT-VMN95 replacement styli, this cartridge offers durability and flexibility for both casual and serious listeners.
Specifications:
- Frequency Response: 20 – 23,000 Hz
- Channel Separation: 22 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Stylus Construction: Nude Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Elliptical
- Cantilever: Aluminium Pipe
- Static Compliance: 20 x 10^–6 cm / dyne
- Dynamic Compliance: 7 x 10^–6 cm / dyne (100 Hz)
- Mounting: 1/2” centres
- Cartridge Weight: 6.1g
- Dimensions: 17.2 x 18.9 x 28.3 (H x W x D mm)
- Accessories Included: Two 11 mm installation screws, Two 8 mm installation screws, Two washers, Non-magnetic screwdriver
- Model: AT-VM95EN
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95EN
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
