AT-VM95E

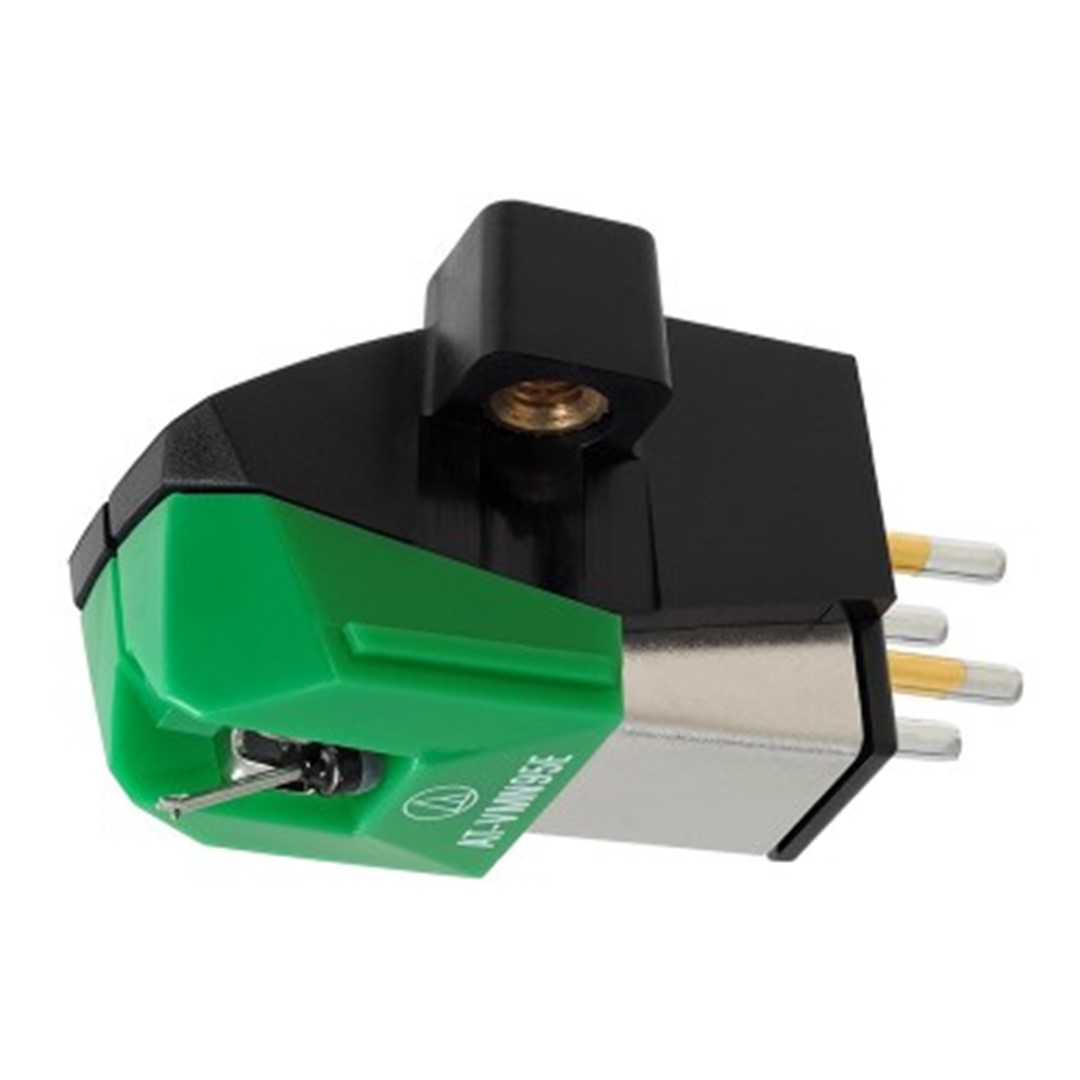

The Audio Technica AT-VM95E Dual Moving Magnet Cartridge is a powerful and precise vinyl cartridge designed for half-inch mount turntables. Featuring a 0.3 x 0.7 mil elliptical stylus, 4.0 mV output voltage, and a durable low-resonance housing, it delivers exceptional sound clarity and easy installation. Compatible with six interchangeable styli, it's the perfect upgrade for audiophiles seeking enhanced playback performance.
Specifications:
- Cartridge Type: VM stereo dual magnet
- Stylus Shape: Elliptical (0.3 x 0.7 mil)
- Stylus Construction: Bonded round shank
- Cantilever: Aluminum pipe
- Frequency Response: 20 – 22,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Vertical Tracking Angle: 23°
- Static Compliance: 17 x 10⁻⁶ cm/dyne
- Dynamic Compliance: 7 x 10⁻⁶ cm/dyne (100 Hz)
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Recommended Load Impedance: 47,000 Ω
- Recommended Load Capacitance: 100-200 pF
- Mounting: 1/2” centers
- Cartridge Weight: 6.1g
- Dimensions: 17.2 mm (H) x 18.9 mm (W) x 28.3 mm (D)
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
- Replacement Stylus: AT-VMN95E
- Wire Used for Coil: T.P. Copper
