AT-VM95C

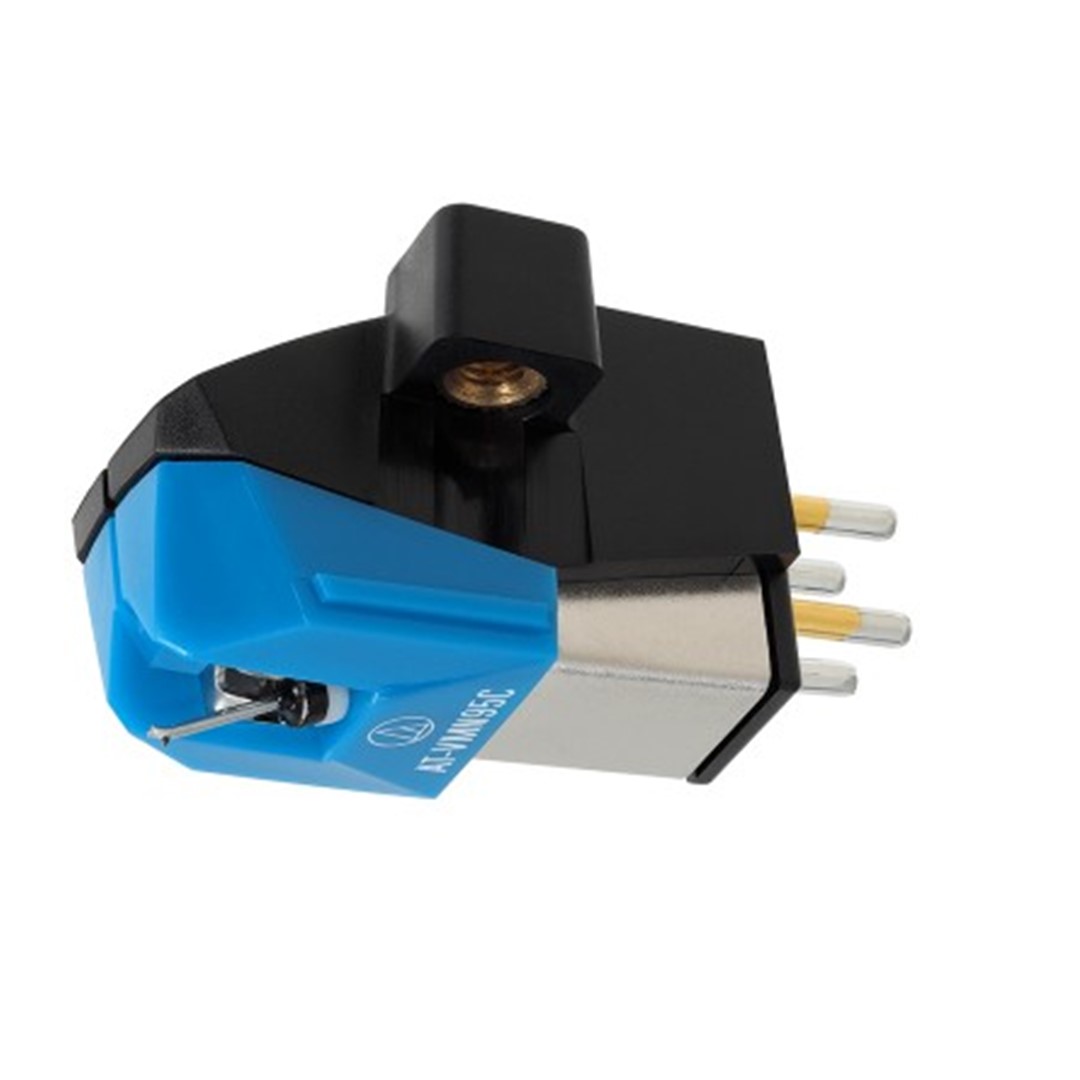

The Audio-Technica AT-VM95C Dual Moving Magnet Cartridge features a 0.6 mil conical stylus, durable polymer housing, and high output level for superior audio quality. Its easy mounting and compatibility with AT-VMN95 replacement styli offer versatility and convenience for turntable users.
Specifications:
- Frequency Response: 20-20,000 Hz
- Channel Separation: 18 dB (at 1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec)
- Output Channel Balance: 2.5 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Aluminum pipe
- Static Compliance: 17 x 10⁻⁶ cm/dyne
- Dynamic Compliance: 6.5 x 10⁻⁶ cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1 g
- Dimensions: 17.2 mm H × 18.9 mm W × 28.3 mm D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
- Replacement Stylus: AT-VMN95C
