ATW-11DE3

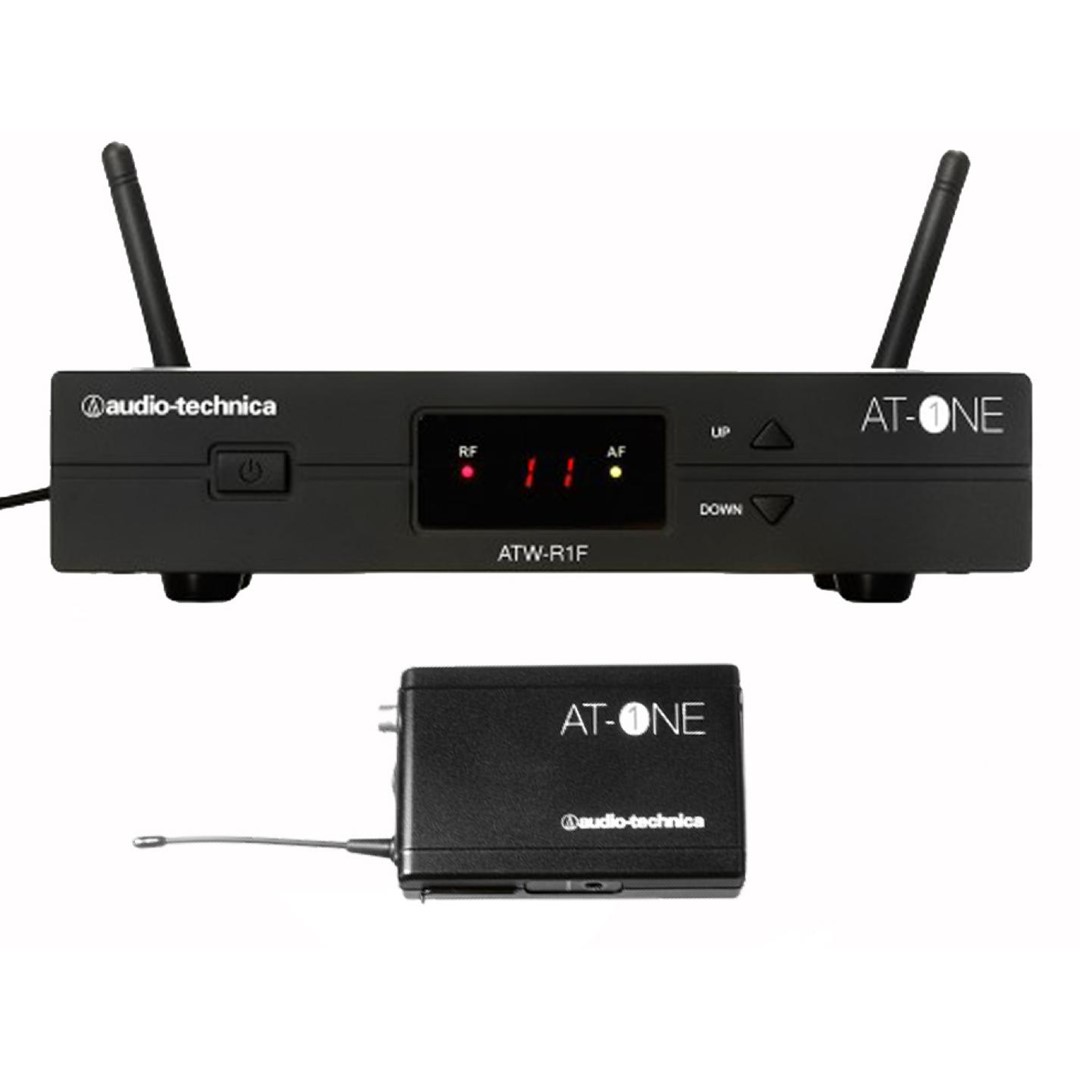

The Audio-Technica ATW-11DE3 AT-One Beltpack System is a reliable entry-level UHF wireless solution, featuring a versatile 2 x 4 channel frequency plan. With a sturdy design, user-friendly interface, and impressive battery life of up to 10 hours, this system delivers exceptional audio performance. Ideal for both beginners and professionals, it includes essential accessories for convenience and flexibility.
Specifications:
- Operating Frequencies: DE3 Band: 482 – 512 MHz
- Number of Channels: 2 x 4 frequencies
- Frequency Stability: +/- 0.005%, Phase lock loop frequency control
- Modulation Mode: FM
- Frequency Response: 60 Hz – 16 kHz
- Operating Range: 60 m, typical
- Receiver System: Antenna switching diversity
- Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
- Sensitivity: 10 dBµV (S/N 60 dB @ 20 kHz deviation)
- Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
- Audio Output Unbalanced: -2 dBV
- Audio Output Balanced: 4 dBV
- Output Connectors (Microphone): Balanced: XLRM-type
- Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
- Maximum Output Level: Mic / Line (0 / -20 dB)
- Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100 mA each
- Dimensions (Receiver): 200 mm x 42 mm x 122 mm (W x H x D)
- Weight (Receiver): 418 g without accessories
- Accessories Included: AC Adapter, antennas, rack mount adapter, protective carrying case
- RF Power Output (Belt Pack): 10 mW
- Battery Life: 10 hours – depending on battery type and use pattern
- Dimensions (Belt Pack): 66 mm x 98 mm x 22 mm (W x H x D)
