ES947C/FM3

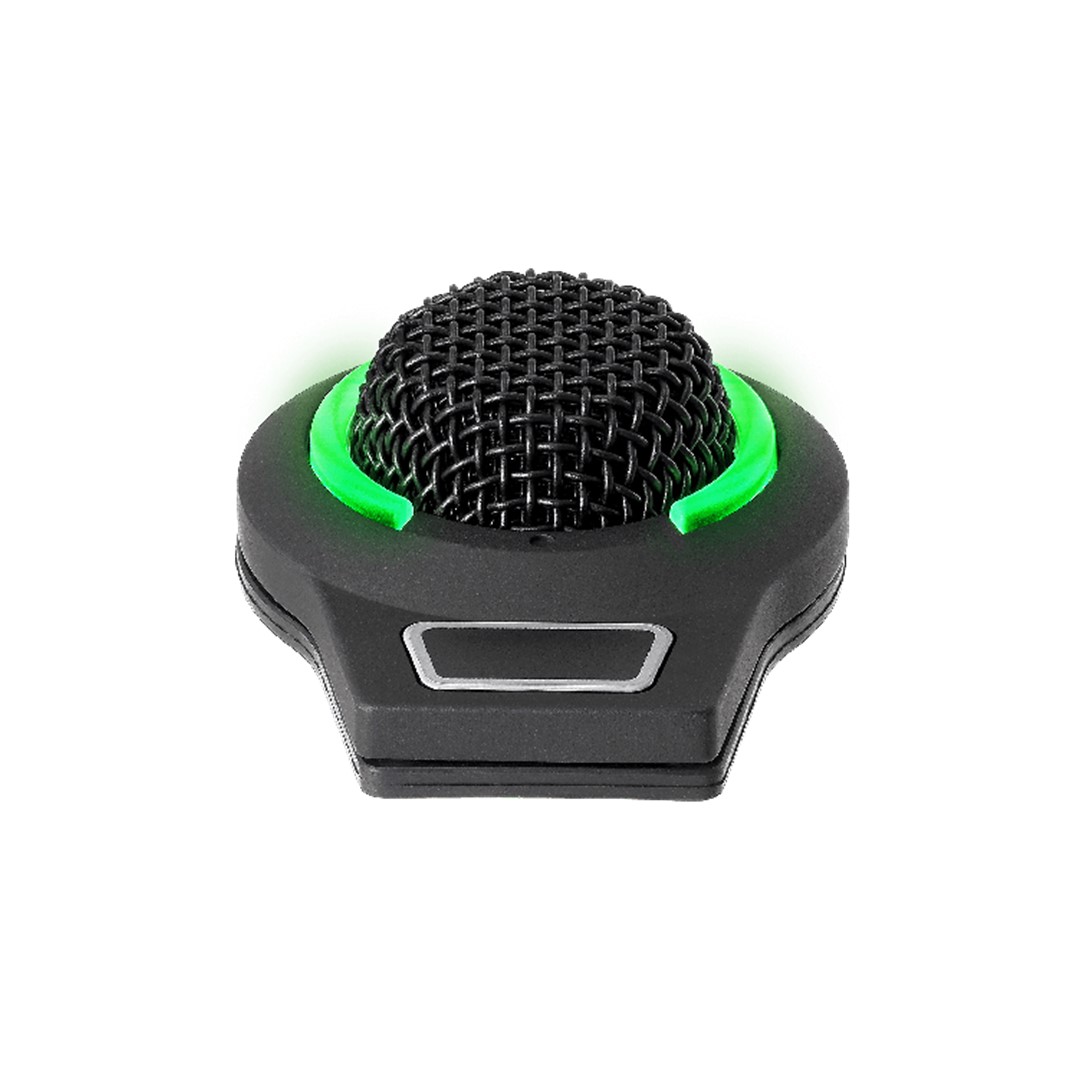

The Audio-Technica ES947C/FM3 Cardioid Condenser Boundary Microphone offers professional-grade sound capture for conferencing, recording, and monitoring applications. Featuring a capacitive touch switch for local muting, an RGB LED ring, and UniGuard® RFI-shielding, this low-profile microphone delivers clear, focused audio while blending seamlessly into any tabletop or panel installation.
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 70-15,000 Hz
- Open Circuit Sensitivity: -37 dB (0 dB = 1V/Pa, 1 kHz)
- Output Impedance: 60 ohms
- Maximum Input Sound Level: 134 dB SPL (1 kHz at 1% THD)
- Dynamic Range: 110 dB (1 kHz at max SPL)
- Signal-to-Noise Ratio: 70 dB (1 kHz at 1 Pa, A-weighted)
- Phantom Power Requirements: 11-52V DC, 7.5 mA
- Weight: 59 g (2.1 oz)
- Dimensions: 38.0 mm (1.50″) W x 48.0 mm (1.89″) D x 84.8 mm (3.34″) H
- Output Connector: 3-pin XLRM-type
- Accessories Included: Rubber isolators (two types), nut
