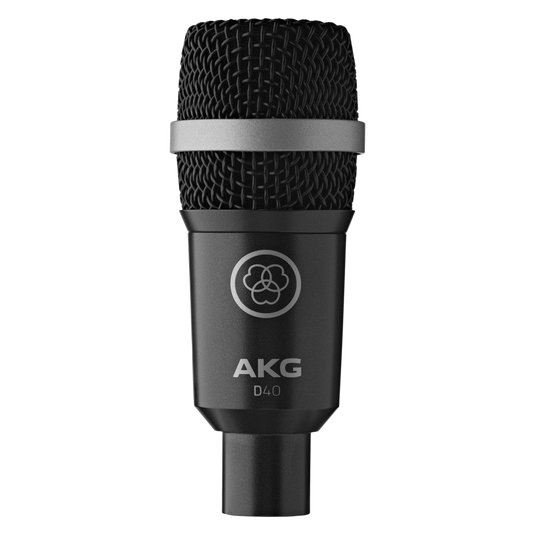

D40
The D40 professional instrumental microphone with its solid all-metal body will stand up to the hardships of night-after-night onstage use “with a smile.” An integrated stand adapter in combination with the included H440 mounting bracket makes the D40 a highly versatile tool for use on drums, percussion, wind instruments and guitar amps.
General Specifications
- Type
- Dynamic pressure gradient microphone
- Polar Pattern
- Cardioid
- Audio frequency bandwidth
- 50 - 20000 Hz
- Sensitivity at 1000 Hz
- 2.5 mV/Pa (–52 dBV re 1 V/Pa)
- Equivalent noise level
- 18 dB(A) (IEC 60268-4)
- Max. SPL for 1 % / 3 % THD
- 147 dB SPL / 156 dB SPL
- Electrical impedance at 1000 Hz
- ≥ 600 Ohms
- Recommended load impedance
- ≥ 2000 Ohms
Dimensions
- Length
- 104 mm
- Height
- 79 mm
- Diameter
- 44 mm
- Net Weight
- 245 g
Design
- Body
- metal
- Finish
- dark stage blue
Audio Output
- Type
- Balanced XLR
- Gender
- Male
- Contacts
- 3-pin
Application
- Live Instrument
Instrument
- Drums / Percussion
- Guitar Amps / Bass Amps
