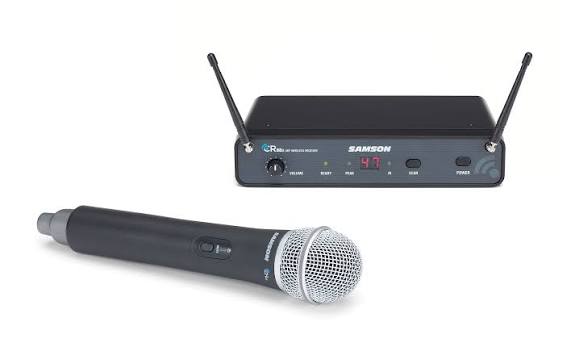

Concert 88x Handheld
The Concert 88x Handheld wireless system is the perfect solution for singers, educators, and presenters who demand professional-grade audio and ease of use. The one-touch scan feature quickly analyzes and selects the clearest of the 100 available channels, while the true-diversity design and tone key circuitry provide reliable wireless performance.
Concert 88x Handheld System
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- Up to 8 systems can be used simultaneously per frequency band (region dependent)
- 300' operating range (line-of-sight)
- Rackmount kit included
CH88 Handheld Transmitter
- Q7 dynamic microphone capsule
- Adjustable input gain
- Silent mute button
- Power/Mute status indicator
- Up to eight hours of continuous use from two AA batteries
CR88x Wireless Receiver
- One-touch automatic frequency scan finds the best operating channel
- Two digit LED display
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
- Balanced XLR and unbalanced 1/4" outputs
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >90 dB |
| Tone Key Frequency | 35 kHz |
| Microphone Element | Dynamic |
|---|---|
| Input Gain Range | 28 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 8 hours |
| Dimensions | 10.23" x ø2.1" / 260mm x ø54mm |
| Weight | 0.48lb / 218g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm |
| Weight | 0.88lb / 400g |
