CGN99C/Large

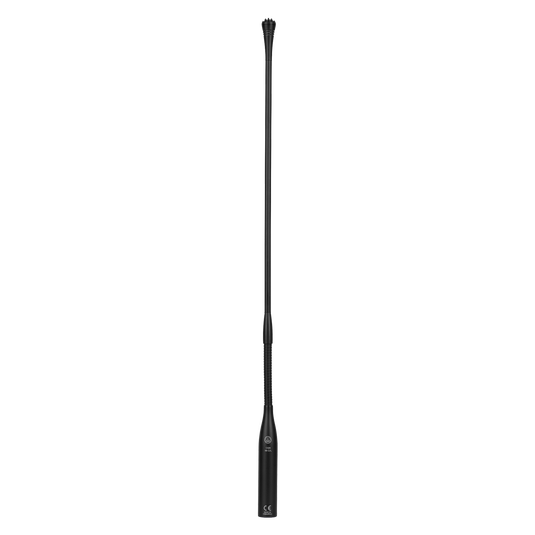

The CGN99 C/S and CGN99 C/L, part of the DAC Series, are condenser gooseneck microphones with a cardioid polar pattern. They are specially designed for inexperienced speakers who talk into the microphone from widely varying angles. The rugged gooseneck is available in two different lengths - C/S - 30cm (12in); C/L - 50cm (20in) and ideal for fixed and mobile installations.
General Specifications
- Audio frequency bandwidth
- 70 - 18000 Hz
- Equivalent noise level
- 21 dB-A
- Signal to Noise
- 73 dB-A
- Bass cut filter
- 250 Hz
- Electrical impedance
- 600 Ohms
- Recommended load impedance
- 2000 Ohms
- Polar Pattern
- Cardioid
Dimensions
- Height
- 380 mm
- Diameter
- 13.5 mm
- Net Weight
- 160 g
Design
- Finish
- matte black
Audio Output
- Type
- Balanced XLR
- Gender
- Male
- Contacts
- 3-pin
Powering Interface
- Voltage
- 9 to 52 V
- Current
- 3 mA
