BP893TH

Manufacturer Audio Technica Email
Your price: R5600
Normally: R5600
You Save:

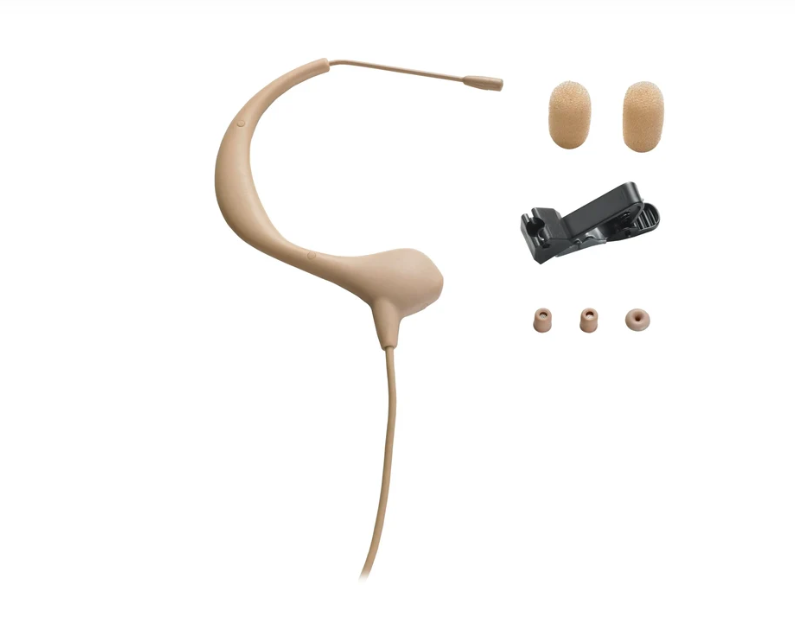

With its ergonomically molded earpiece and unobtrusive one-inch boom, Audio-Technica's BP893 MicroEarset offers inconspicuous placement along with clear, natural vocal pickup. Its lightweight low-profile design makes the microphone ideal for use in theatrical performances, houses of worship and broadcast studios. The BP893 MicroEarset is positioned unobtrusively over the ear. Its omnidirectional miniature condenser capsule offers outstanding pickup tailored for natural vocal reproduction, with audio reproduction similar to that of a high-quality lavalier microphone. The microphone is also ideal for use in violin pickup; wear the BP893 over the ear as usual, with no need for clamps on the violin.


  • Outstanding clarity and intelligibility
  • Lightweight, ergonomic design
  • Extremely unobtrusive, 1-inch flexible boom
  • Secure over-the-ear placement
  • Extended frequency response for natural vocal reproduction
  • Locking 4-pin microphone output connector compatible with included power module and all Audio-Technica UniPak® body-pack wireless transmitters
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Available in black and beige, wired and wireless models: BP893 – includes AT8539 power module BP893-TH – same as BP893, but in "theater" color (beige) BP893c – less power module; 55" (1.4 m) cable, unterminated BP893c-TH – same as BP893c, but in "theater" color (beige) BP893cH – less power module; 55" (1.4 m) cable terminated with a screw-down 4-pin connector for use with Audio-Technica wireless systems featuring cH-style connector BP893cH-TH – same as BP893cH, but in "theater" color (beige) BP893cW – less power module; 55" (1.4 m) cable terminated with a locking 4-pin connector for use with Audio-Technica wireless systems featuring cW-style connector BP893cW-TH – same as BP893cW, but in "theater" color (beige) BP893cL4 – less power module; 55" (1.4 m) cable terminated for Sennheiser wireless systems using Lemo connector BP893cL4-TH – same as BP893cL4, but in "theater" color (beige) BP893cLM3 – less power module; 55" (1.4 m) cable terminated for Sennheiser wireless systems using locking 3.5 mm connector BP893cLM3-TH – same as BP893cLM3, but in "theater" color (beige) BP893cT4 – less power module; 55" (1.4 m) cable terminated with TA4F-type connector for Shure wireless systems BP893cT4-TH – same as BP893cT4, but in "theater" color (beige) BP893cT5 – less power module; 55" (1.4 m) cable terminated with TA5F-type connector for Lectrosonics wireless systems BP893cT5-TH – same as BP893cT5, but in "theater" color (beige)


Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 20-20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity -34 dB (19.9 mV) re 1V at 1 Pa
Maximum Input Sound Level 114 dB SPL, 1 kHz at 3% T.H.D.
Dynamic Range 88 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio 68 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical (wired only)
Switches Flat, roll-off (wired only)
Current Consumption 0.1 mA typical at 5V (wireless only)
Voltage Range 2.5-11V (wireless only)
Weight (Microphone) Microphone, boom & earpiece: 2.0 g (0.07 oz)
Weight (Power Module) 85 g (3.0 oz)
(wired only)
Cable 1.4 m (55") long (permanently attached to microphone), 1.6 mm (0.06") diameter, 2-conductor shielded cable with locking 4-pin connector (wired and cW versions)
Dimensions Microphone: 8.1 mm (0.32") long, 2.6 mm (0.10") diameter
Boom: 26.4 mm (1.04") long, 1.07 mm (0.04") diameter
Dimensions (Power Module) 97.6 mm (3.84") long, 18.9 mm (0.74") diameter
(wired only)
Output Connector (Power Module) Integral 3-pin XLRM-type
Audio-Technica Case Style M31
