Hercules DJ Inpulse 500 Controller
Hercules DJControl Inpulse 500 is the new DJ controller that lets you achieve your ambitions! Created for Serato DJ Lite and DJUCED to help you get started DJing, refine your skills and perform in front of audiences, DJControl Inpulse 500 has a professional design with a sturdy metal backing plate, and tons of great features: four extendable/retractable non-slip feet to elevate your mixing, a hardware mixer for the audio inputs, a dedicated Filter/FX area with awesome effects, two large jog wheels with touch detection for scratching, 16 backlit rubber RGB pads, helpful light guides for mixing with total confidence.
Although the DJControl Inpulse 500 features Learn-to-DJ guides and DJUCED’s AI-driven
Intelligent Music Assistant, it also boasts multiple features that help DJs confidently make the leap
to performing for an audience and getting paid for their efforts:

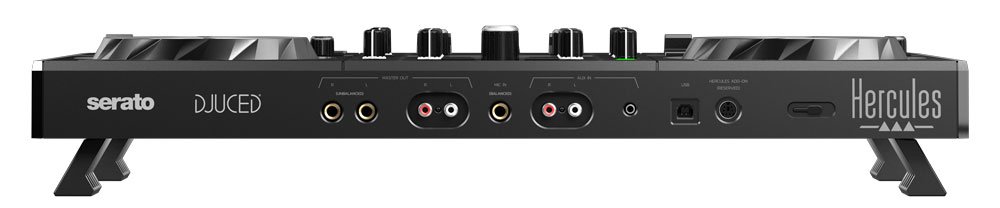

• Ready-to-mix audio options: Powered by USB, the backside of the controller is wide
open for external sources - DJs can quickly plug in their smartphone or a media player via
dual RCA auxiliary input or a 3.5mm stereo mini-jack as a back-up or as an extra source of
music. Plus, the hardware mixer for audio inputs comes with an aux filter.
• Controlled MC features: Plug in a microphone into the balanced micro input and play
MC. The voice can be equalized, and its level is displayed on a VUmeter- if it glows red, it
is peaking.
• Filter FX: This pro performance feature lets DJs push their mix customization to new levels
and personalize their sets with effects available with Serato and DJUCED®.

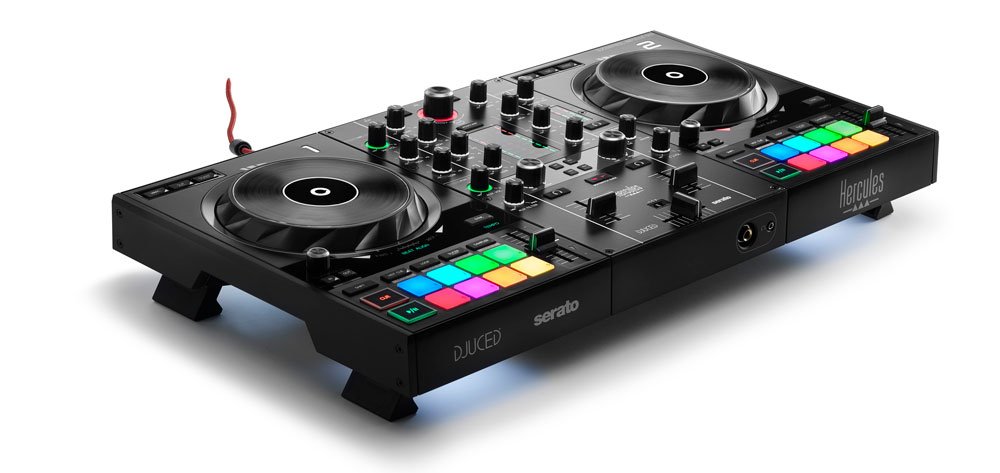

• Solid retractable feet: Elevate the controller with folding feet underneath that glow when
extended. This unique feature protects the controller from spilled drinks during rowdy
performances and makes DJs look just a little more slick.
• Build quality: sturdy metal backing plate on the mixer, rubber RGB pads and built-in
Velvet Sound DSP from AKM for processing audio inputs and outputs.
• Streaming support: Enjoy millions of tracks to mix with TIDAL and SoundCloud Go+
integrated within Serato and with Beatport LINK, Beatsource LINK and Qobuz integrated
within DJUCED.
Audio
Built-in audio interface
Built-in Velvet Sound DSP from AKM: processing audio inputs and outputs
– Master output (speakers): 2 x 1/4” / 6.35 mm jack + 2 x RCA
– Headphones output: 1/8” / 3.5 mm stereo mini-jack + 1/4” / 6.35 mm stereo jack
– Auxiliary input: 2 x RCA + 1/8” / 3.5 mm stereo mini-jack
– Microphone input: balanced 1/4” / 6.35 mm jack
Audio resolution: 44.1 kHz / 24-bit
Controls Per Deck
Control per deck:
– Play, Cue, Shift, Sync
– 2 x 8 soft pads with RGB backlighting
– 8 pads x 8 modes (hot cue, loop, slicer ….)
– jog wheels with touch detection (diameter of jog wheels: 5.5” )
– Loop: In / Out + loop encoder
– Modes: Vinyl, (+ Slip and Quantize in DJUCED and in Serato DJ Pro)
– Beatmatch guide
Controls On Mixer
General:
– 1 crossfader with curve adjustment
– Master volume knob, headphones volume knob and Cue/Mix knob
– Microphone volume knob with High EQ knob and Low EQ knob
– Auxiliary volume knob and filter knob
– 2 VU-meters + Master VU meter
– Filter/effects rack with 4 effects buttons and 2 filter knobs
Per deck :
– 1 filter knob
– 3 EQ knobs
– 1 gain knob
– 1 volume fader
– 1 VU meter
Music library controls: Rotary encoder + 2 Load buttons + Assistant button
Beatmatch Guide
Tempo guide: light guide alongside each tempo fader
Beat Align guide: light guide underneath each jog wheel
IMA
IMA (Intelligent Music Assistant)
– The Assistant in DJUCED suggests well-suited upcoming tracks to be played from your music library, and in Beatport LINK and Beatsource LINK as well. Enable the Assistant to launch Autoplay in Serato DJ Lite.
– The Energy feature in DJUCED helps you select tracks according to the energy level for your party
