LPW40WN

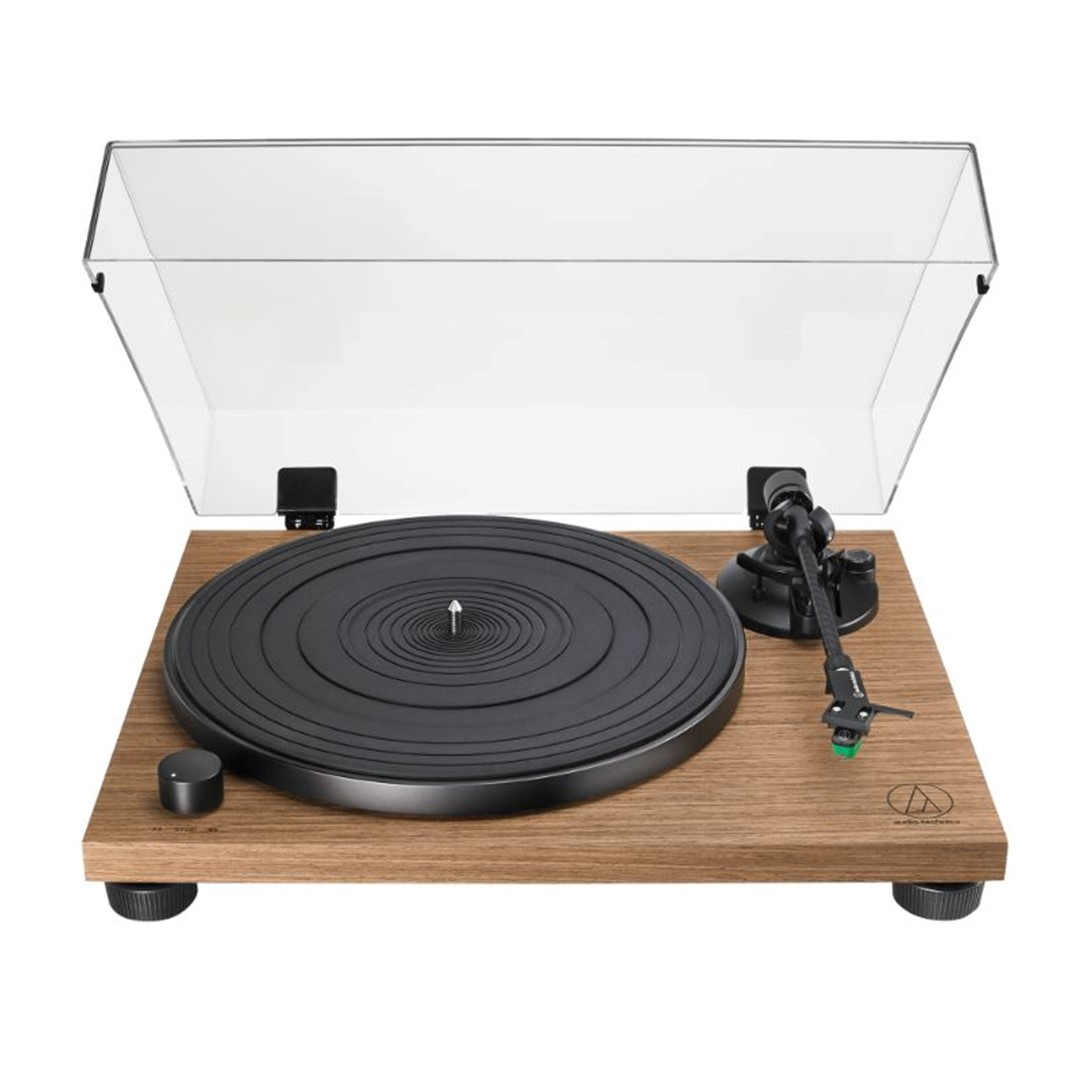

The Audio-Technica AT-LPW40WN is a fully manual, belt-drive turntable featuring an anti-resonance MDF plinth with simulated walnut veneer. It offers precision playback with a straight carbon-fiber tonearm and the AT-VM95E Dual Moving Magnet phono cartridge. With a built-in phono preamp and versatile connectivity, this turntable delivers exceptional sound quality and elegant design.
Specifications:
- Type: Belt-drive manual turntable
- Motor: DC servo with Active Speed Stabilization
- Drive Method: Belt drive
- Speeds: 33-1/3 RPM, 45 RPM
- Turntable Platter: Die-cast aluminum
- Wow and Flutter: < 0.15% WRMS (33 RPM) at 3 kHz
- Signal-to-Noise Ratio: > 60dB
- Output Level: Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec; Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
- Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
- Power Supply Requirements: 100-240 V, 50/60 Hz, 0.5 A Max.
- Dimensions: 420.0 mm (16.53″) W x 340.0 mm (13.38″) D x 116.9 mm (4.6″) H
- Weight: 4.72 kg (10.40 lbs.) without dust cover
- Accessories Included: Dust cover, platter, turntable mat, drive belt, counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3′)), AC adapter (approx. 1.5 m (4.9′)), dust cover hinges
- AC Adapter: 12 V, 0.5 A
- Tonearm Type: Static balanced straight carbon tonearm
- Effective Arm Length: 223.6 mm
- Overhang: 18.6 mm
- Tracking Error Angle: <2 degrees
- Stylus Pressure Adjustment Range: 0-3 g
- Applicable Cartridge Weight: 12-17 g
- Replacement Stylus: AT-VMN95E
