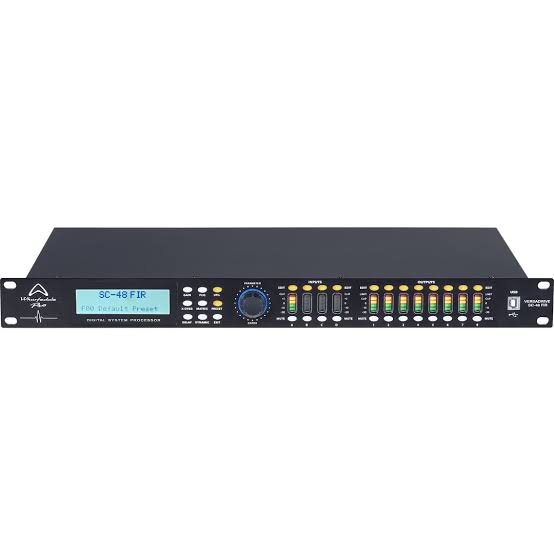

VERSADRIVE SC48 FIR
To get the most from any PA system, external signal processing is essential.
Features
- Complete digital sound processing solution
- Internal DSP + FIR filtering
- 4 in / 8 out matrix
- AES Digital input
- Password protection for venue install
- 24-bit 96 KHz AD/DA convertors
- RMS compressors AND Peak limiters on all outputs
- USB / RS232 / RS485 / RJ45 connectivity
- User friendly software included
Specifications
| Input channels | 4 |
| Output channels | 8 |
| Frequency response | 20 Hz-20 KHz，-0.3 dBu |
| Signal to noise ratio | >115 dBu |
| Distortion | <0.005 at 1 KHz (0 dBu) |
| Crosstalk | <100 dB below full scale |
| Maximum input level | +18 dBu |
| Maximum output level | +20 dBu |
| Input impedance | Balanced 500 KΩ, Unbalanced <500 KΩ |
| Digital processing | 24-bit sigma-delta，96 KHz sampling rate. |
| Display | 20 × 2 LCD Display |
| AC Power | AC 100-240 V |
| H x W x D | 480 × 245 × 450 mm |
| Weight | 2.88 kg |
