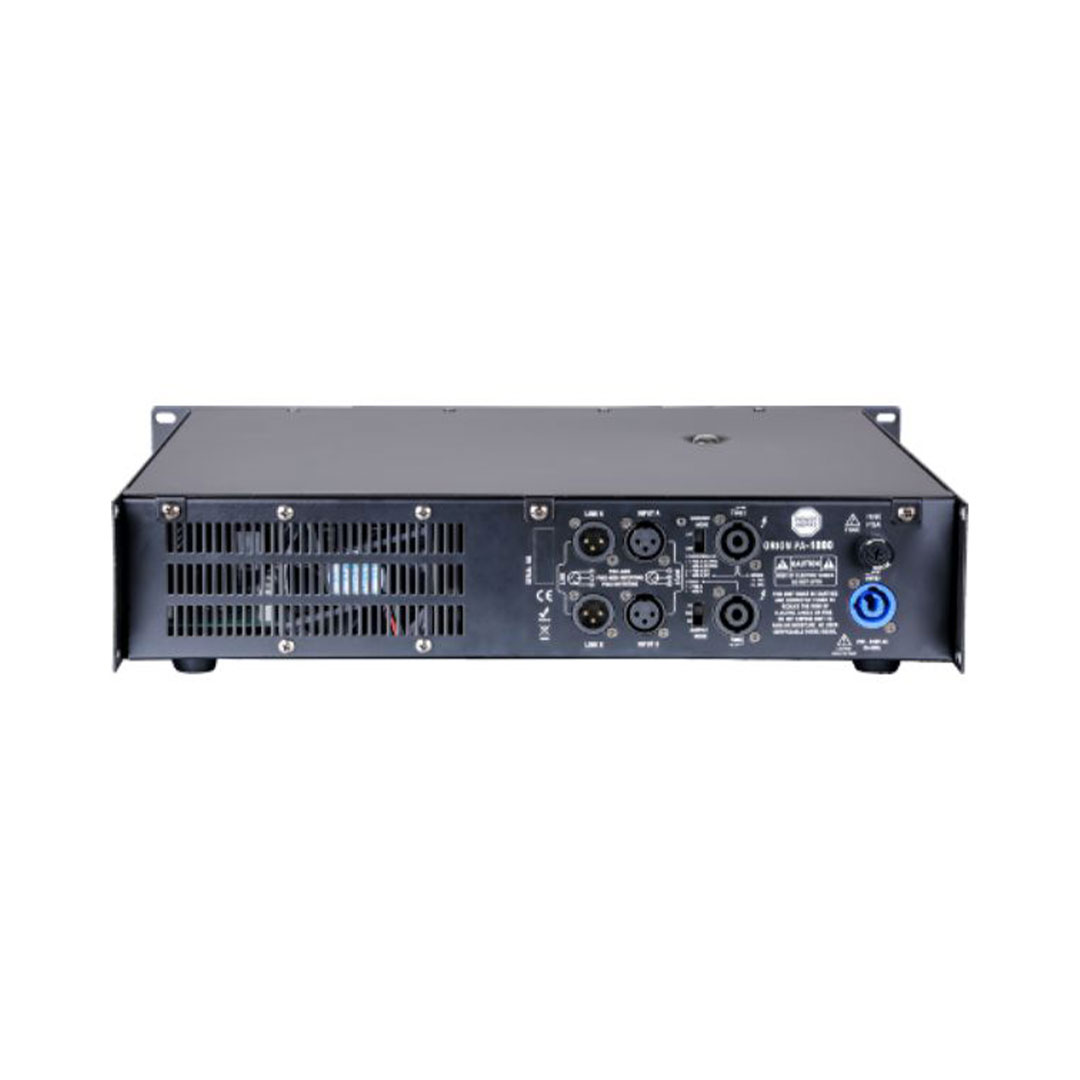

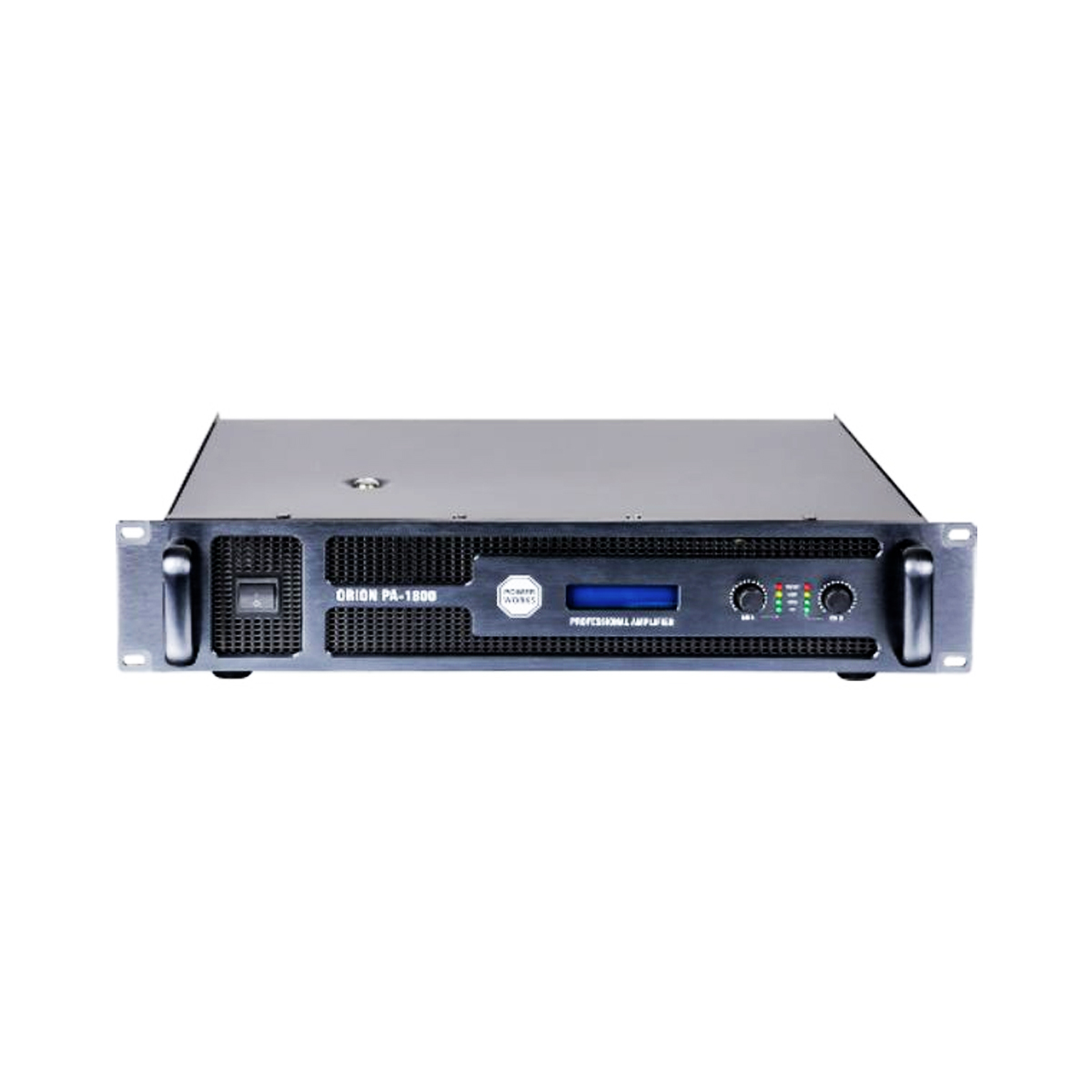

PowerWorks PA-1800
The Powerworks ORION PA-1800 Amplifier is a professional-grade audio amplifier designed for versatility and reliability.
- Model: ORION PA-1800
- Stereo Power at 8 Ohm: 2 x 450W
- Stereo Power at 4 Ohm: 2 x 900W
- Bridge Power at 8 Ohm: 1800W
- Signal to Noise Ratio: 115dB
- Slew Rate: 90V/µs
- Damping Factor: 270
- Frequency Response: 20Hz – 20kHz
- Total Harmonic Distortion + Noise (THD+N): ~0.5% at 1kHz, 1/3 rated power at 8 Ohm
- Intermodulation Distortion (IMD): ~0.5% at 1kHz, 1/3 rated power at 8 Ohm
- Crosstalk: 85dB
- Input Sensitivity: ~0.77V balanced / 0dB unbalanced
- Input Impedance: 10k Ohm balanced / 20k Ohm unbalanced
- Input Interface: Three-core female XLR
- Link Interface: Three-core male XLR
- Speaker Interface: SPEAKON connectors (4-pole)
- LED Indicators: Power, Signal (-40dB), Clip (Peak), Protection
- Power Supply: 1800W
- Cooling Mode: Front to rear step-less air cooling
- Net Weight: 15 kg
- Gross Weight: 18 kg
- Mounting Size: 2U / 19″ rack mount
- Dimensions (WxHxD): 483 x 101.5 x 421 mm
