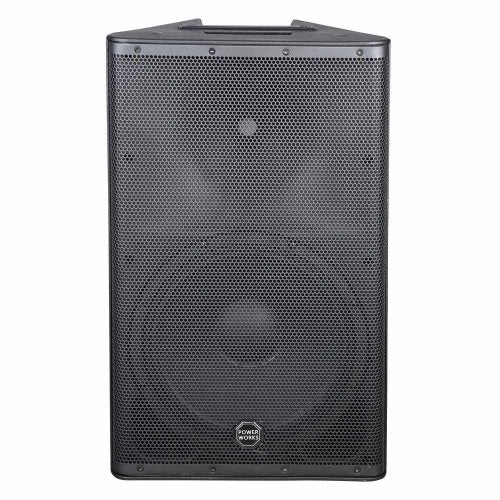

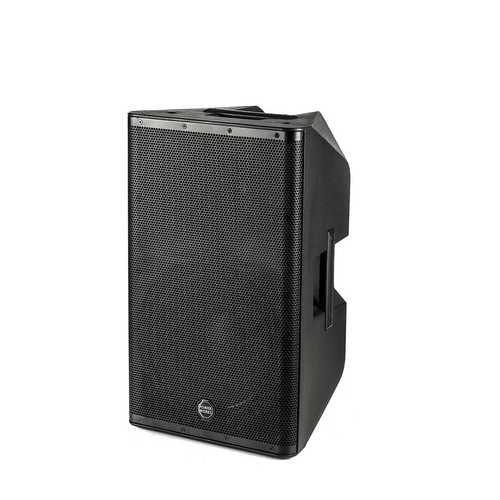

Powerworks Apollo 12PD

: The speaker features a frequency response range of 50Hz to 19kHz, enabling it to deliver rich and detailed sound quality. The constant directivity horn provides 90° x 90° coverage, ensuring even sound distribution across a wide area, enhancing the listening experience for all attendees.

Flexible Installation Options: The APOLLO 12PD is designed for versatility, compatible with standard D35mm speaker poles for elevated setups. Additionally, it includes flyable hardware options, allowing for various installation configurations, making it adaptable to any performance environment.

Specifications

• Power Output:
  • Low-Frequency Amplifier: 350W RMS, 700W Peak (Class-D)
  • High-Frequency Amplifier: 50W RMS, 100W Peak (Class-AB)
• Frequency Response: 50Hz – 19kHz (-10dB)
• Max SPL: 134 dB
• Low-Frequency Transducer: 12″ woofer with 2.36″ voice coil
• High-Frequency Transducer: 1.35″ compression driver
• Coverage: 90° x 90° constant directivity horn

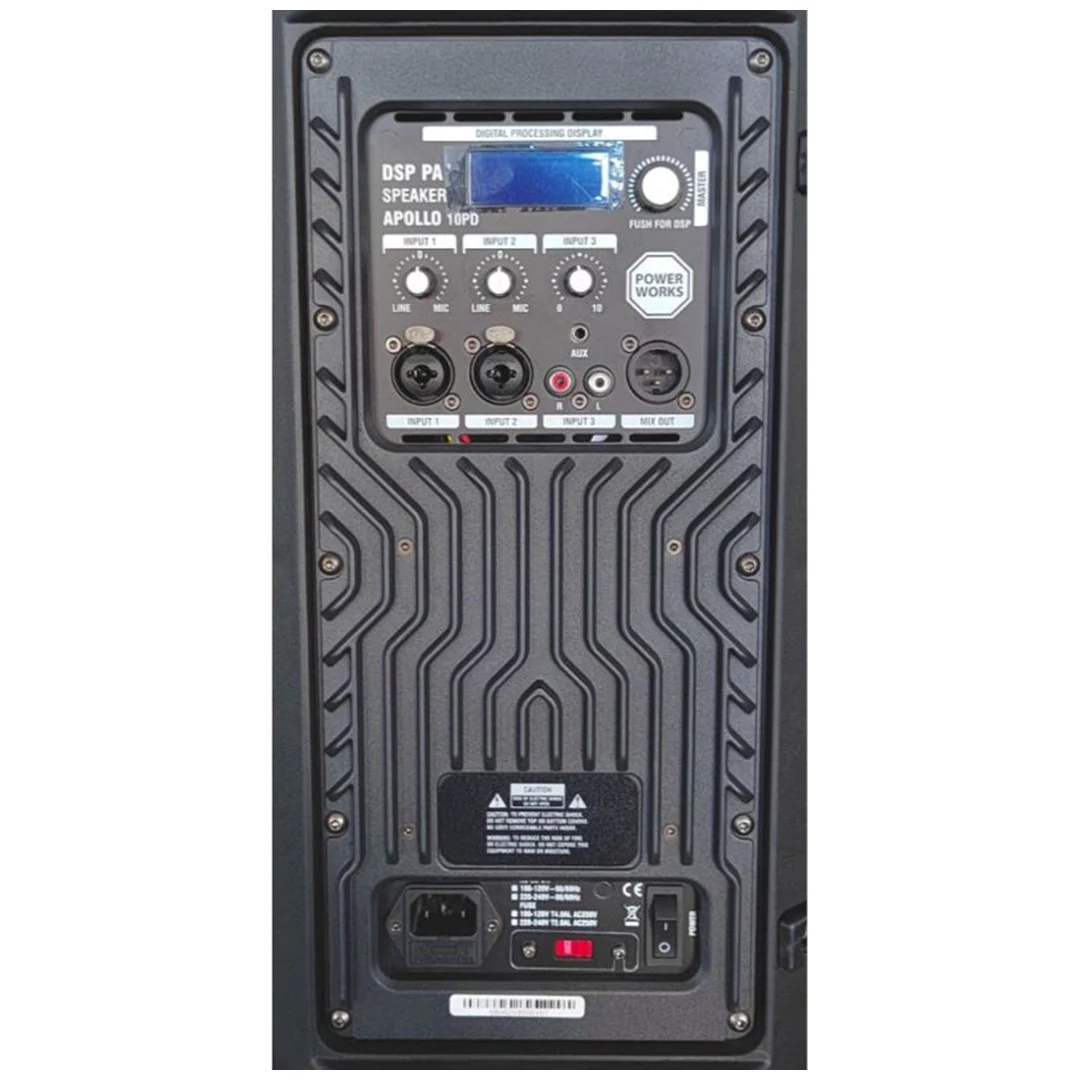

• Input Connections:
  • 1x Balanced MIC/Line XLR input
  • 2x 1/4″ Jack Line inputs
  • 1x Mini-Jack input
  • 1x RCA stereo input
• Output Connections:
  • 1x XLR Thru Output (from Input 1)
  • 1x XLR Link Output with mono/stereo selection
• DSP: Fully customizable DSP control
• Housing Material: Polypropylene with black anti-scratch paint
• Grille: Steel, 1mm
• Handles: 2 side handles, 1 top handle
• Pole Mount: Standard D35mm with dual tilt (0° or 7°)
• Power Supply: 220/240V, 50/60Hz
• Power Consumption: 400W average, 1200W peak
• Fuse: T6.3AL-250V
