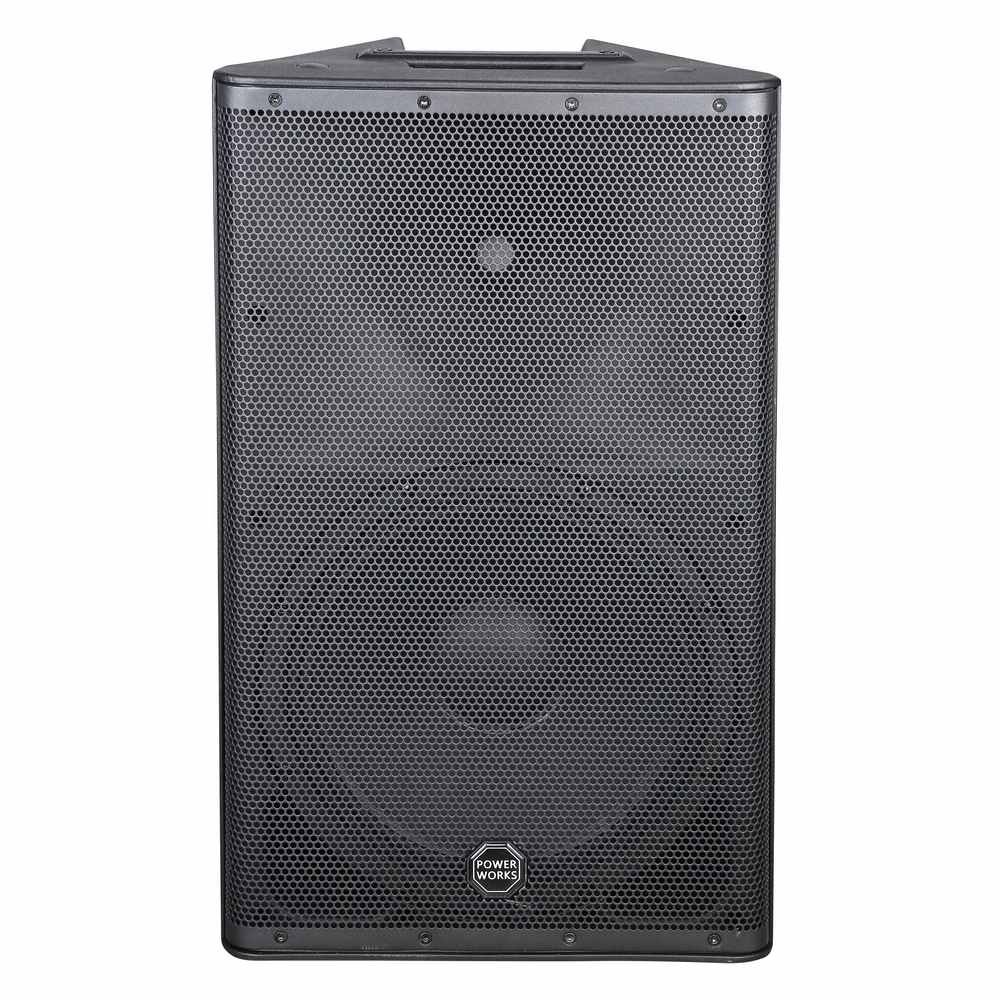

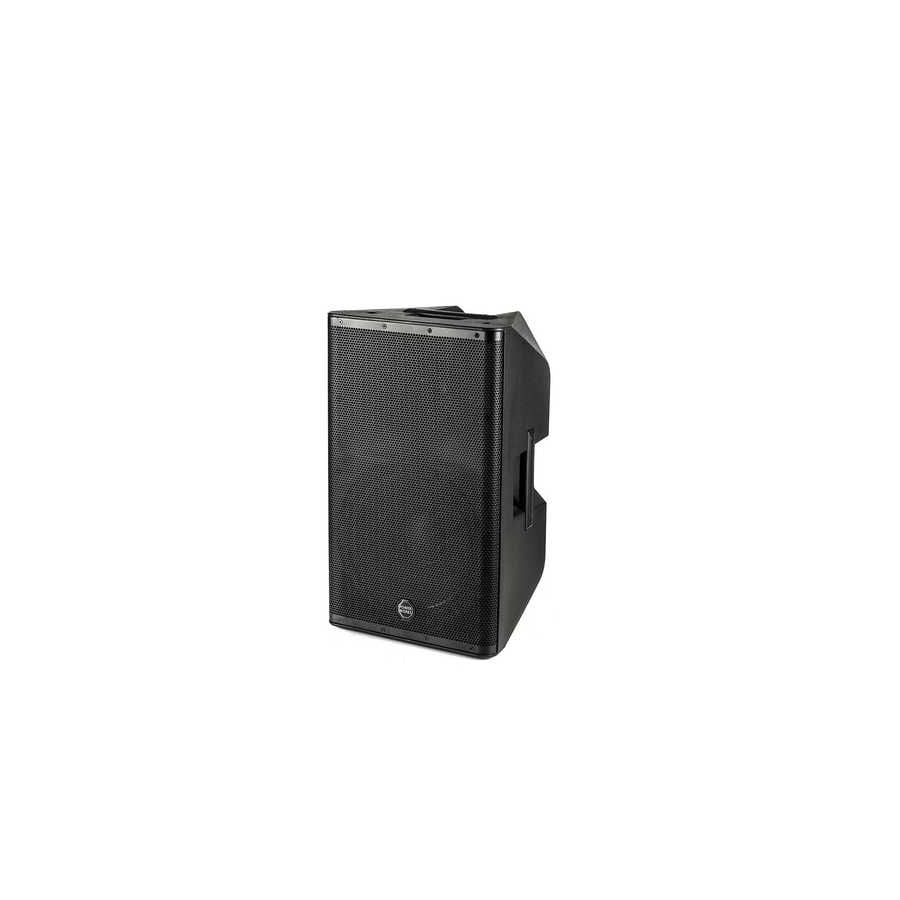

Powerworks Apollo-10PD
APOLLO PD Series speakers are part of a larger range of PowerWorks Pro Audio product line. This cabinet delivers 600W peak power, Specially selected transducers and compression drivers with a powerful Customisable DSP Display, advanced housing material and anti-scratch black paint
| Frequency Response | 55Hz – 19kHz / -10dB |
| Max SPL | 132 dB |
| Low-freq. Transducer | 10″ Woofer 2″ Voice Coil |
| High-freq. Transducer | 1.35″ Compression Driver |
| Coverage | 90 x 90 constant directivity horn |
| Low-Frequency Amplifier | Class-D 250W RMS – 500W Peak |
| High-Frequency Amplifier | Class-AB 50W RMS – 100W Peak |
| AC Mains | 220/240V 50/60Hz |
| Power Consumption (Average/Peak) | 400W / 1200W |
| Fuse | T6.3AL-250V |
| DSP | Customisable DSP Display |

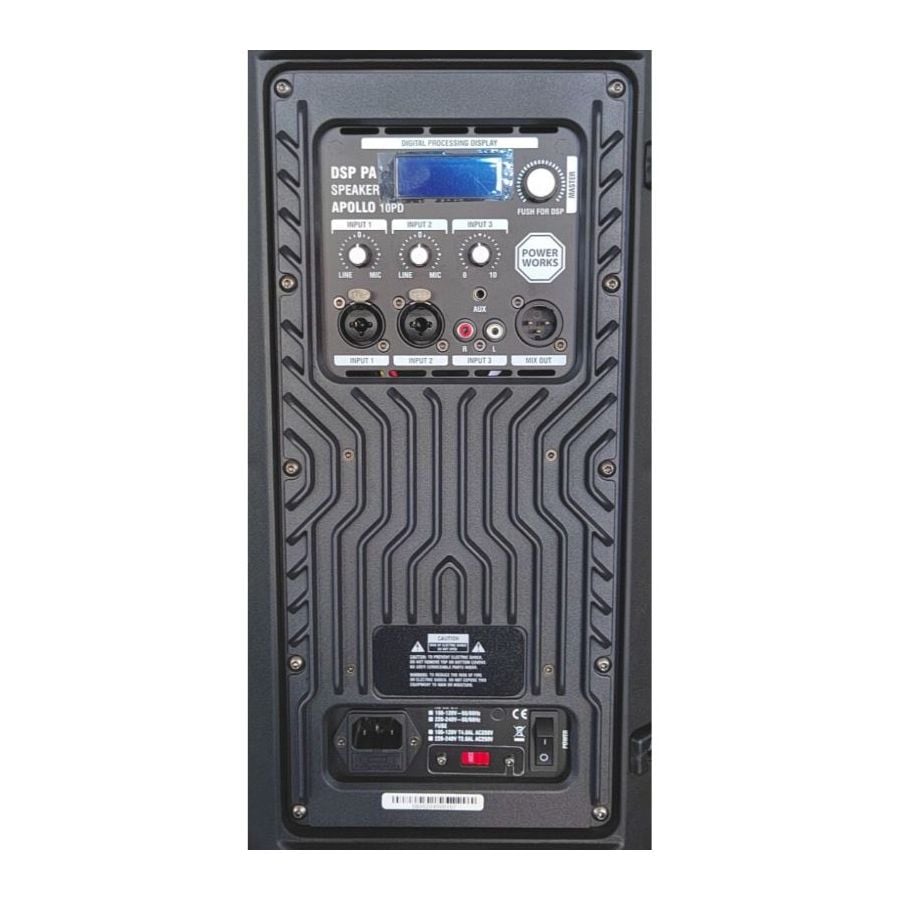

| Input Connections | 1x XLR connector, 2x 63mm Jack, 1x Mini-Jack, 1x RCA Pair |
| Output Connectors | 1x XLR Thru Output (Input 1), 1x XLR Link Output with Mono/Stereo selection |
| Housing Material | Polypropylene |
| Grille | Steel/1mm |
| Flyable | Yes |
| Handles | 2 on sides; 1 on top |
| Tripod/Pole Hole | Standard D35mm with dual tilt 0 or 7 degrees |
| Speaker Size (WxHxD) | 355 x 590 x 372 mm |
| Packing Size (WxHxD) | 475 x 605 x 400 mm |
| Speaker Weight | 13 kg |
| Carton Weight | 14 kg |
