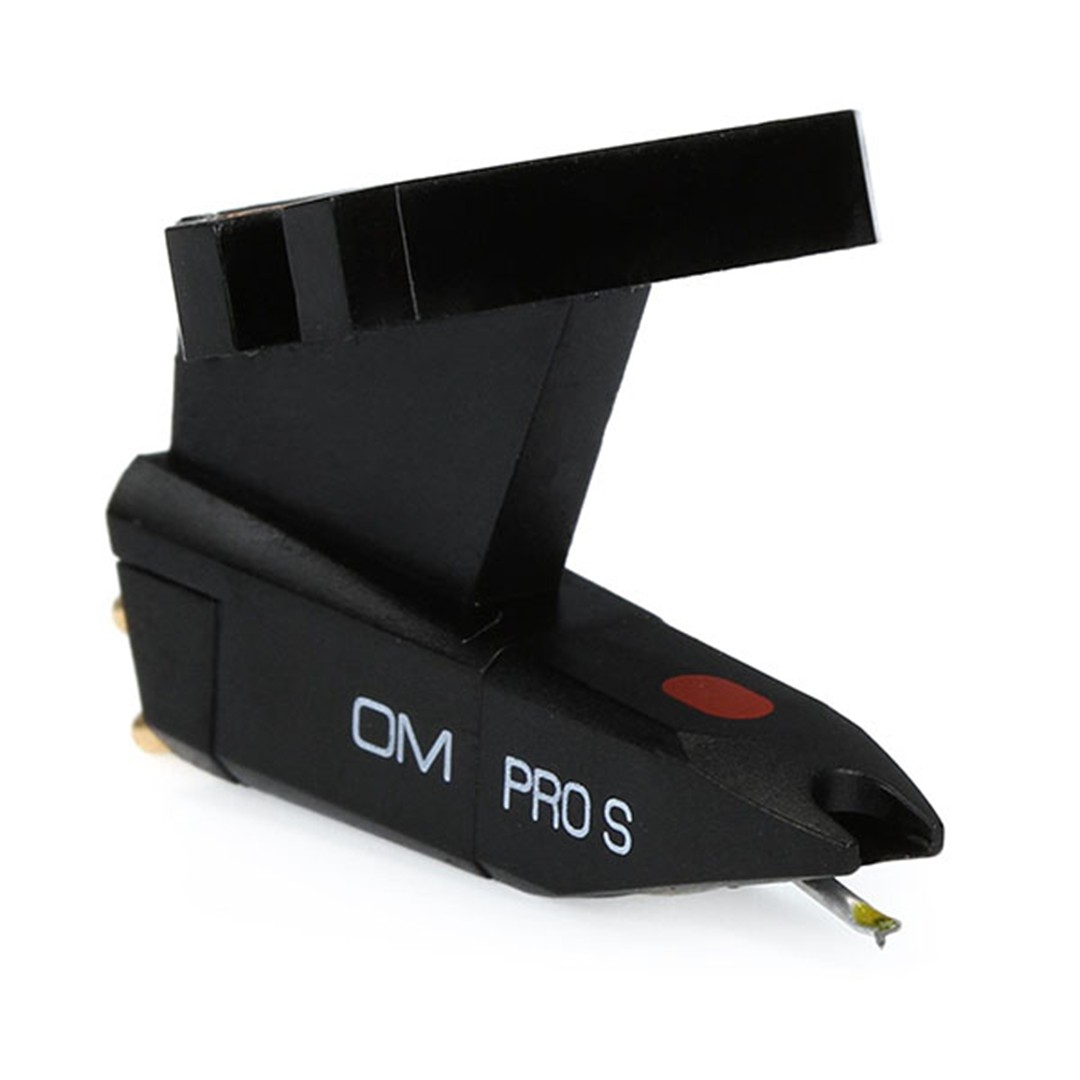

Ortofon OM PRO S

Core Performance Features

• Rugged Entry-Level Workhorse: Built to handle the everyday rigors of DJing, offering high durability and reliable tracking across all music genres.

• Low-Wear Spherical Diamond: Features a precision spherical diamond tip (R 18 µm) that sits higher in the groove, preserving vinyl life during repetitive backcueing and practice routines.

• Balanced Sound Reproduction: Delivers an even, musical frequency curve across low, mid, and high frequencies without overly boosting or cutting particular bands.

• Standard Half-Inch (1/2") Mount: Mounts to standard headshells (such as the Ortofon SH-4 or Technics headshells), allowing precise adjustment of overhang, tracking angle, and tonearm balance.

• Removable Weight Plate: Includes Ortofon's classic brass top weight plate, giving users the choice between a lighter 2.5 g body or standard 5.0 g configuration to match various tonearm mass requirements.

• Wide Compatibility: Works cleanly with both analog vinyl pressings and digital vinyl systems (DVS) like Serato DJ Pro, rekordbox DVS, and Traktor Scratch.

Technical Layout & Specifications

• Cartridge Type: Moving Magnet (MM).

• Mounting Standard: Standard 1/2" (half-inch) 4-pin headshell mount.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 5 mV (@ 1 kHz, 5 cm/sec).

• Frequency Response: 20 Hz – 18,000 Hz (±2 dB).

• Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

• Recommended Tracking Force: 4.0 g (40 mN).

• Tracking Ability: 70 µm (@ 315 Hz at recommended tracking force).

• Channel Separation: 20 dB (@ 1 kHz).

• Internal Impedance / DC Resistance: 750 Ohms.

• Internal Inductance: 450 mH.

• Recommended Load Resistance: 47 kOhms.

• Recommended Load Capacitance: 200 – 600 pF.

• Cartridge Weight: 5.0 g (with weight plate) / 2.5 g (without weight plate).
