Ortofon CC MKII TWIN DIGITAL

Core Performance Features

• Complete Dual-Deck DVS Package: Supplies two factory-matched Concorde MkII DIGITAL cartridges with pre-installed styli, providing an immediate two-deck setup.

• Protective Aluminum Flight Case: Arrives in a rugged, custom foam-padded aluminum hard case with a secure latch and stylus brush, protecting delicate cantilevers during transport between club gigs.

• Massive 10 mV Output Signal: Delivers an ultra-hot 10 mV output that maximizes signal-to-noise ratio, helping audio interfaces and mixer soundcards decode timecode tone with lower gain and minimal software drift.

• Preserves Control Vinyl Lifespan: Specifically tuned cantilever suspension and spherical diamond tip sit smoothly in microgrooves, significantly reducing record wear on sensitive timecode vinyl.

• Direct SME Tonearm Mounting: Screws directly into standard S-shaped SME-bayonet tonearm sockets without headshells, lead wires, screws, or manual alignment tools.

• Ergonomic Replaceable Finger Lift: Features wide, textured red finger lifts engineered for steady cueing and needle-drops in dim club booths, easily replaced if damaged.

Technical Layout & Specifications

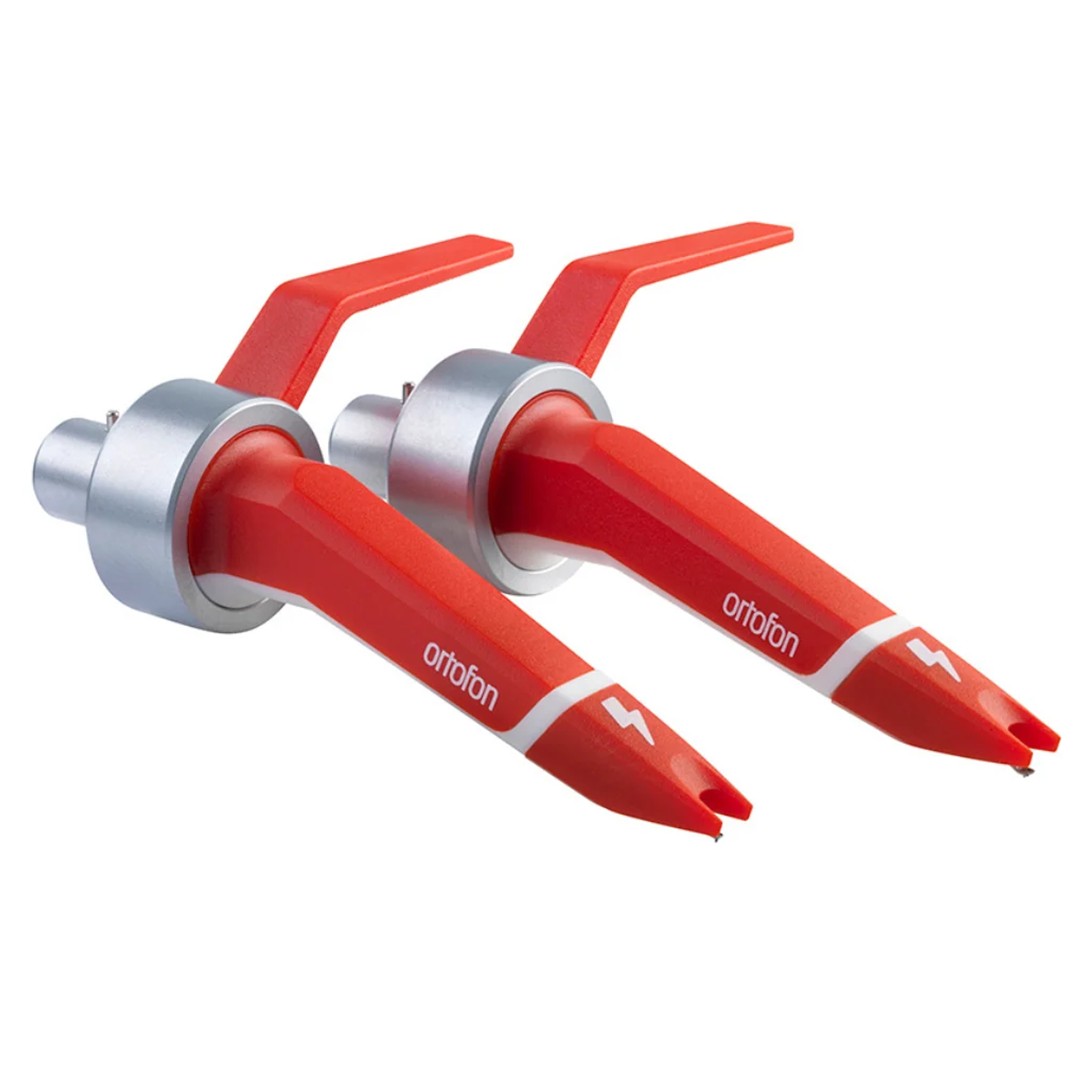

• Package Contents: 2 x Ortofon Concorde MkII DIGITAL cartridges (with styli), 1 x Stylus brush, 1 x Aluminum flight case.

• Cartridge Type: Moving Magnet (MM).

• Mounting Connection: Direct SME 4-pin bayonet.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 10 mV (@ 1 kHz, 5 cm/sec).

• Frequency Response: 20 Hz – 18,000 Hz.

• Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

• Recommended Tracking Force: 4.0 g (40 mN).

• Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).

• Channel Separation: 22 dB (@ 1 kHz).

• Internal Impedance / DC Resistance: 1,200 Ohms.

• Internal Inductance: 850 mH.

• Recommended Load Resistance: 47 kOhms.

• Recommended Load Capacitance: 200 – 400 pF.

• Cartridge Weight (Each): 18.5 g.
