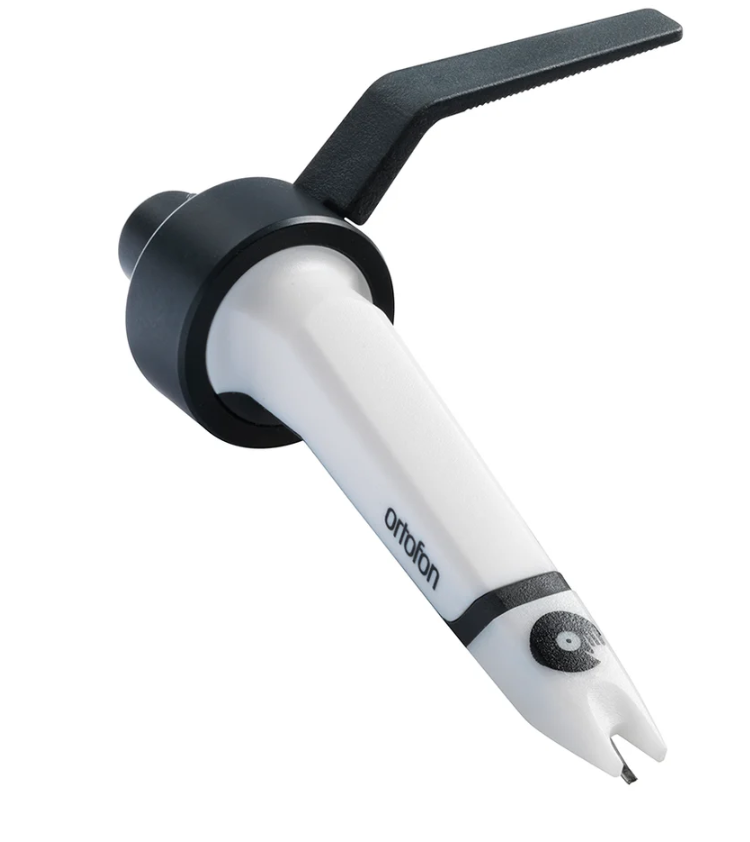

Ortofon CC MKII SCRATCH

Core Performance Features

• Massive 10 mV Output Level: Pumps out an ultra-high 10 mV signal to deliver punchy, energetic low frequencies, high dynamic range, and strong signal-to-noise performance into DJ mixer phono preamps.

• Maximum Scratch Tracking Ability: Built with an extra-stiff cantilever suspension boasting a 120 µm tracking rating, designed to resist needle skips during aggressive backcueing, fast scratching, and heavy finger manipulation.

• Low-Wear Spherical Diamond: Features a precision spherical diamond tip that sits higher in the groove, minimizing vinyl burn and excessive record wear on both traditional pressings and DVS timecode control discs (Serato, rekordbox, Traktor).

• Direct Plug-and-Play SME Mounting: The one-piece Concorde body screws directly into standard S-shaped SME-bayonet tonearm sockets, eliminating the need for headshell leads, mounting screws, or alignment protractors.

• Replaceable Ergonomic Finger Lift: Outfitted with Ortofon's wide, textured finger lift for secure tactile handling and cueing in dark club environments, designed to be swapped out quickly if broken.

Technical Layout & Specifications

• Package Contents: 1 x Ortofon Concorde MkII SCRATCH cartridge with pre-fitted stylus.

• Cartridge Type: Moving Magnet (MM).

• Mounting Connection: Direct SME 4-pin bayonet.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 10 mV (@ 1 kHz, 5 cm/sec).

• Frequency Response: 20 Hz – 18,000 Hz.

• Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

• Recommended Tracking Force: 4.0 g (40 mN).

• Tracking Ability: 120 µm (@ 315 Hz at recommended tracking force).

• Channel Separation: 22 dB (@ 1 kHz).

• Internal Impedance / DC Resistance: 1,200 Ohms.

• Internal Inductance: 850 mH.

• Recommended Load Resistance: 47 kOhms.

• Recommended Load Capacitance: 200 – 400 pF.

• Cartridge Weight: 18.5 g.
