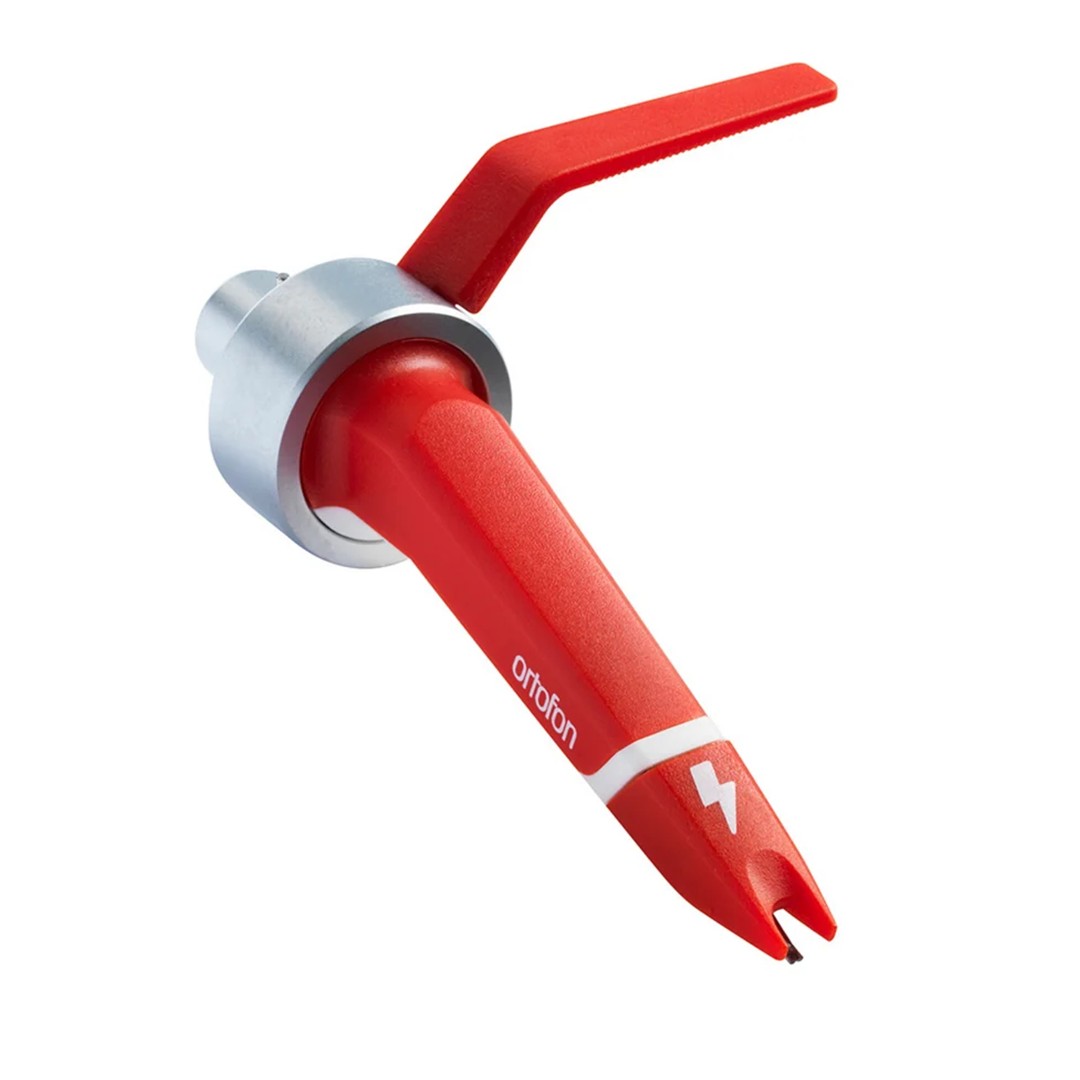

Ortofon CC MKII DIGITAL

Core Performance Features

• Optimized High-Output Design (10 mV): Generates an industry-leading 10 mV output voltage, providing DVS audio interfaces and DJ mixer soundcards with a clean, powerful timecode signal that significantly cuts down on digital tracking glitches and misreads.

• Preserves Timecode Control Vinyl: The diamond and suspension profile are tuned to sit cleanly in control record microgrooves, reducing surface wear and tear on expensive or limited-edition timecode discs during heavy backcueing and repetitive cue points.

• Direct SME Tonearm Mounting: The integrated one-piece Concorde body screws straight into any standard S-shaped SME-bayonet tonearm, completely eliminating headshell leads, mounting screws, and alignment protractors.

• High Signal-to-Noise Ratio: Maximizes incoming signal level to drastically suppress background noise floor and stage hum from interfering with software pitch detection and scratch latency.

• Durable Spherical Diamond: Features a precision spherical diamond tip that provides balanced groove contact, ensuring stable tracking during quick cuts, backspins, and fast cueing.

• Ergonomic Replaceable Finger Lift: Outfitted with Ortofon's broad, textured, red finger lift for confident manual handling in low-light club environments, easily replaced if damaged during travel.

Technical Layout & Specifications

• Cartridge Type: Moving Magnet (MM).

• Mounting Connection: Direct SME 4-pin bayonet.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 10 mV (@ 1 kHz, 5 cm/sec).

• Frequency Response: 20 Hz – 18,000 Hz.

• Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

• Recommended Tracking Force: 4.0 g (40 mN).

• Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).

• Channel Separation: 22 dB (@ 1 kHz).

• Internal Impedance / DC Resistance: 1,200 Ohms.

• Internal Inductance: 850 mH.

• Recommended Load Resistance: 47 kOhms.

• Recommended Load Capacitance: 200 – 400 pF.

• Cartridge Weight: 18.5 g.
