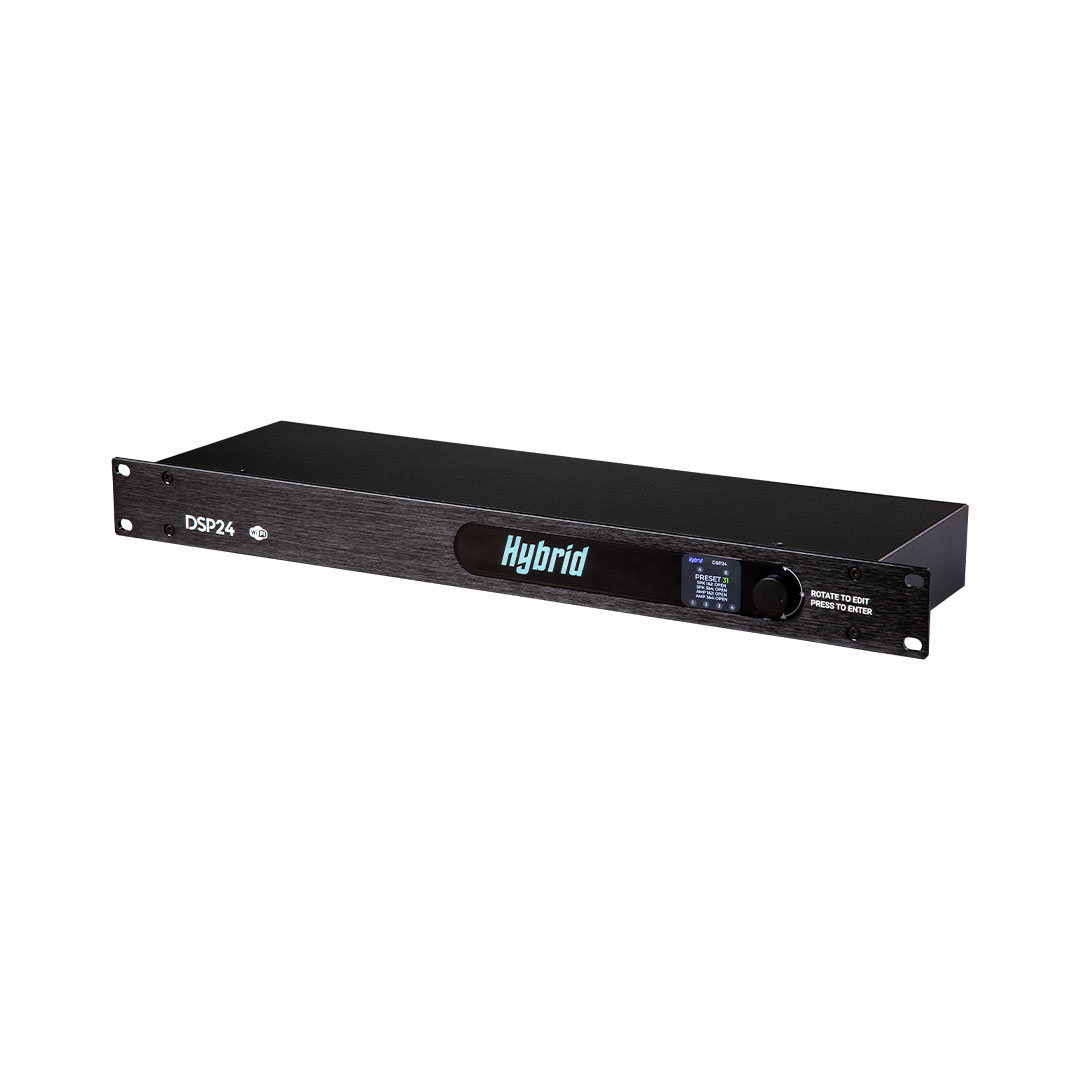

Hybrid DSP24
The ideal replacement for conventional analogue processors, such as crossovers, graphic equalisers and limiters, with password protection
Best value on the market
2 IN / 4 OUT SPEAKER MANAGEMENT PROCESSOR
3 × PARTIALLY EDITABLE ONBOARD PRESETS
Requires no technical knowledge or experience to set up
27 × PRE-LOADED NON-EDITABLE HYBRID PRESETS
Set up to work with the majority of Hybrid and Hybrid+ amplifier and speaker combinations.
Requires no technical knowledge or experience.
2 × FULLY EDITABLE PRESETS
Can be edited with software accessed from PC or smart device
Features
• Linked left and right inputs
• 4 x input PEQs, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
• Outputs 1 and 2 as well as outputs 3 and 4 linked by default
• HPF or LPF with 6, 12, 18 and 24 dB/oct slopes
• Crossover types include Linkwitz-Riley, Butterworth or Bessel filters
• Linked outputs 1 and 2 as well as Linked outputs 3 and 4 can switch between PEQ and 30-band graphic EQ
• 8 × PEQs for linked outputs 1 and 2 as well as outputs 3 and 4, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
• Time-alignment up to 15 ms on linked outputs 1 and 2 and linked outputs 3 and 4
• Linked outputs 1 and 2 as well as linked outputs 3 and 4 have a limiter with attack, release and threshold
• Independent phase invert for all outputs
• Independent mute function for all outputs
• Electronic Earth-lift
• Utilities menu allows you to load the preset from a smart device, save the preset to a smart device, write the preset to the DSP24, change and save the password, upgrade the firmware
and change the LED logo’s colour and intensity
Technical Specifications
Analogue inputs (A and B): Electronically balanced XLR
Analogue outputs (1, 2, 3 and 4): Electronically balanced XLR
Maximum RMS input level: +20 dBu
Input impedance: 20 kΩ @ 1 kHz
Dynamic range: 100 Db
Resolution: 24-bit Delta-Sigma
Maximum RMS output level: +20 dBu
Dynamic range: 104 dB typ.
Output impedance: 100 Ω @ 1 kHz
Frequency response: 10 Hz to 35 kHz (±3 dB)
Overall dynamic range: 102 dB
THD + noise ratio: 0,005% @ 0 dBu
Mains voltage: 100–240 VAC 50–60 Hz
Fuse rating: 250 mA
Power consumption: <10 W
Mains connector: Standard IEC receptacle
Net dimensions (H×D×W): 45 mm × 127 mm × 483 mm
Shipping dimensions (H×D×W): 70 mm × 85 mm × 560 mm
Net weight: 1.6 kg
Shipping weight: 2 kg
