BP892CT4

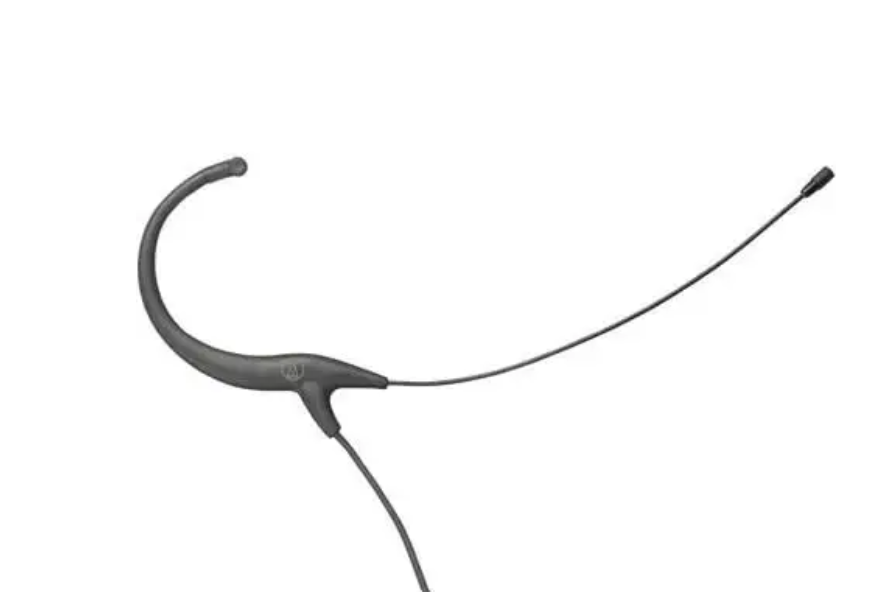

The Audio-Technica BP892CT4 MicroSet Subminiature Headset Microphone (Black) features a lightweight, super low-profile ear-loop that may be flexed to conform to all sizes. Its omnidirectional capsule is highly sensitive and minimizes off-axis noise while enhancing detail. High sound pressure handling makes it an ideal choice for singers, actors, presenters, etc.
Specifications
Here are the key technical specifications for the Audio-Technica BP892CT4 Omnidirectional Condenser Earworn Microphone (or the BP892xCT4 model which is the current version, as the specifications are consistent):
-
Element Type: Fixed-charge back plate, permanently polarized Condenser
-
Polar Pattern: Omnidirectional
-
Frequency Response: 20 Hz to 20,000 Hz
-
Open Circuit Sensitivity: $-43 \text{ dB } (7.2 \text{ mV}) \text{ re } 1 \text{V at } 1 \text{ Pa}$ (for BP892x model, earlier models were $-49 \text{ dB}$)
-
Maximum Input Sound Level (SPL): 136 dB SPL at $1 \text{ kHz}$ at 3% T.H.D.
-
Dynamic Range (Typical): 104 dB
-
Microphone Capsule Diameter: Only $2.6 \text{ mm}$ (sub-miniature)
-
Termination (Connector): TA4F-type connector (for use with Shure wireless bodypack transmitters)
-
Wired/Wireless Use: Designed for Wireless systems (less power module)
-
Weight (Microphone/Earset): Approximately $2.6 \text{ g}$ ($0.09 \text{ oz}$)
