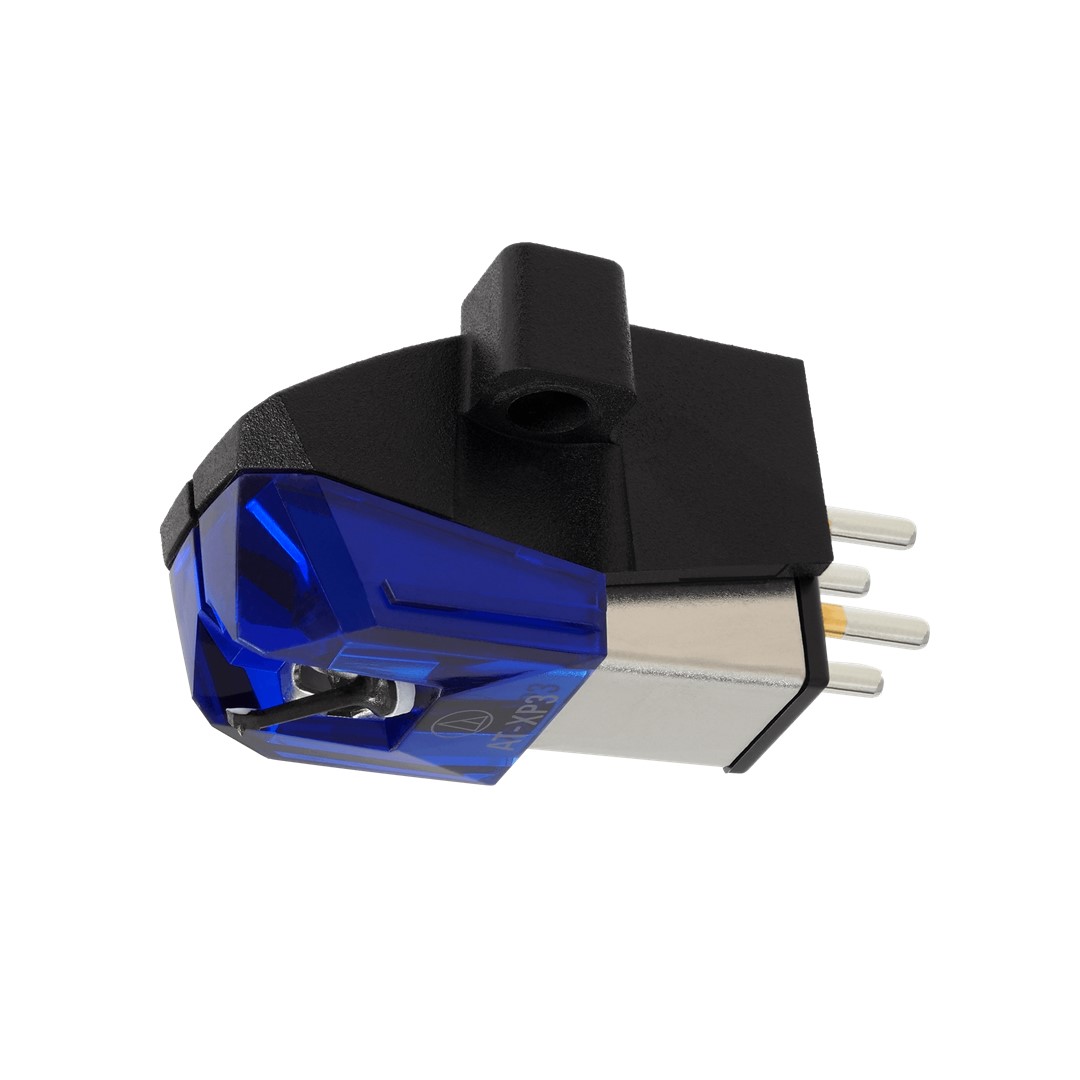

AT-XP3
The Audio-Technica AT-XP3 DJ Cartridge is designed for professional DJs. Featuring a durable PPS/glass fiber body, it supports adjustable tracking force and delivers a 5.5 mV output level. The 0.6 mil conical stylus tracks grooves precisely, ensuring clear sound and minimal distortion. With excellent visibility and compatibility with XP and VM95 replacement styli, it provides a versatile and reliable performance.
Specifications:
- Frequency Response: 20 to 18,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 20 degrees
- Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 6,700 ohms (1 kHz)
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 5.5 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Conical
- Cantilever: Carbon reinforced ABS
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.2g
- Dimensions: 17.2 x 17.8 x 28.3 mm (H x W x D)
- Accessories Included: Two 11 mm installation screws; Two 8 mm installation screws; Two washers; Two nuts; Non-magnetic screwdriver
- Model: AT-XP3
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: ATN-XP3
- Stylus Size: 0.6 mil
