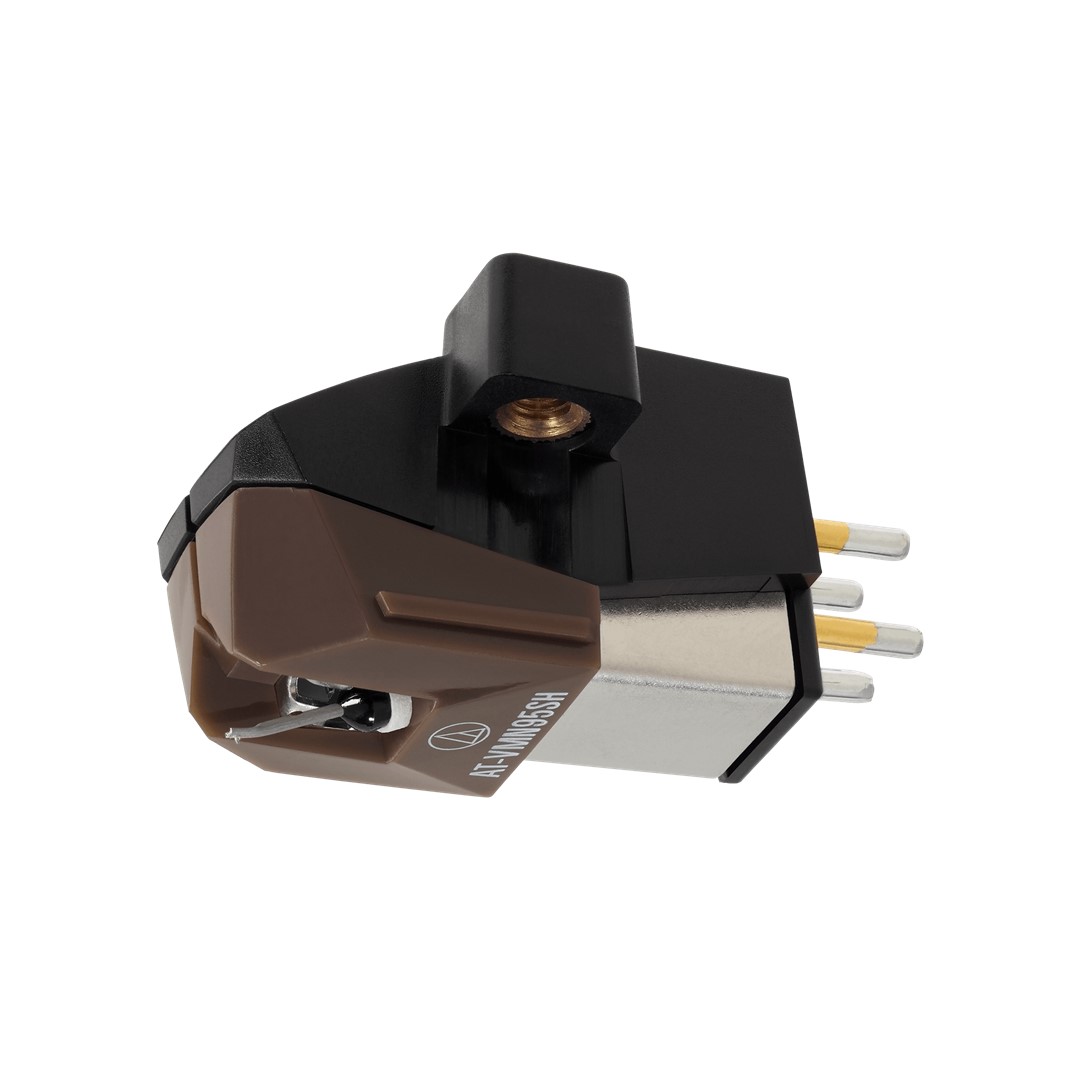

AT-VM95SH
The Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge features a 2.7 x 0.26 mil Shibata stylus for precise tracking and excellent audio clarity. Designed for half-inch mount turntables, it offers easy installation with threaded inserts and low-resonance housing for minimal distortion. The cartridge provides superb channel separation and is compatible with all VM95 Series replacement styli, ensuring versatility and long-term performance.
Specifications:
- Cartridge Type: VM Stereo Dual Magnet
- Frequency Response: 20 – 25,000 Hz
- Channel Separation: 23 dB (1 kHz)
- Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Stylus Construction: Nude Square Shank
- Stylus Shape: Shibata
- Cantilever: Aluminum Pipe
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Channel Balance: 1.5 dB (1 kHz)
- Recommended Load Impedance: 47,000 Ω
- Recommended Load Capacitance: 100 – 200 pF
- Mounting Type: Half-inch mount
- Cartridge Weight: 6.1g
- Dimensions: 17.2 x 18.9 x 28.3 mm (H x W x D)
- Stylus Size: 2.7 x 0.26 mil
- Replacement Stylus: AT-VMN95SH
- Accessories Included: Two 11 mm installation screws, Two 8 mm installation screws, Two washers, Non-magnetic screwdriver
